Installing Tailpipes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean extension positions and replace ball clamp if necessary, depending on its condition.
  2. Put tailpipes in installation position and align → 263415 ALIGNING TAILPIPES .
  3. Tighten fastening screw on ball clamp to → Tightening Torque: 30 Nm (22 ft. lb.)  .

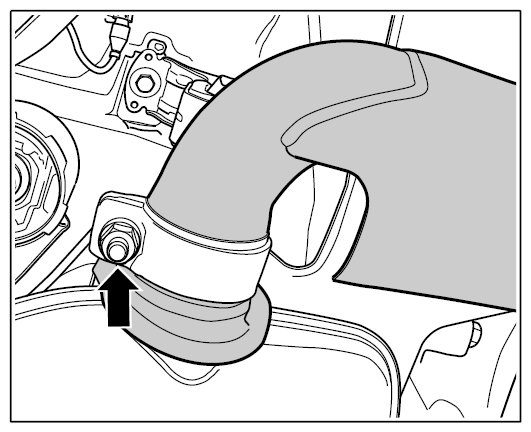

    Fig 1: Locating Fastening Screw Of Tailpipe Clamp
    G09933779Courtesy of PORSCHE CARS NORTH AMERICA, INC.
