Component Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

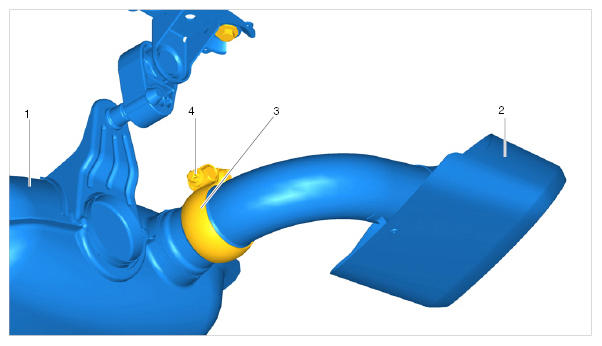

Fig 1: Overview Of Tailpipes Component - V8 Naturally-Aspirated Engines & V6 Engines
G09933776Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Rear Silencer
  2. Tailpipe
  3. Ball Clamp
  4. Fastening Screw On Ball Clamp

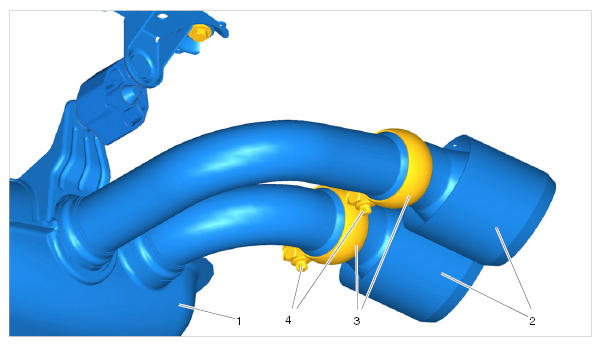

Fig 2: Overview Of Tailpipes Component - V8 Turbo Engines
G09933777Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Rear Silencer
  2. Tailpipe
  3. Ball Clamp
  4. Fastening Screw On Ball Clamp
