Adjusting And Aligning Tailpipes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Tailpipe not fitted correctly

Components can heat up

→ Observe exact gap dimensions.

→ After the test drive, check the gap dimensions again and re-adjust if necessary.

Information

If the gap dimensions of the tailpipes with respect to the rear apron are different due to design changes, the tailpipes must be adjusted to a uniform distance from the rear apron.

Check Gap Dimensions Of Tailpipe With Respect To Rear Apron. →

Tailpipe - V8 Turbo

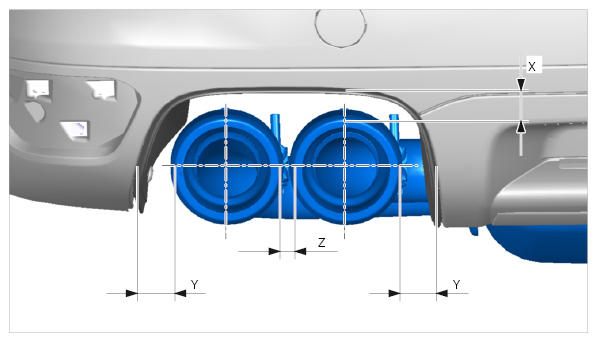

Fig 1: Identifying Tailpipe Gap Dimension - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

X - Gap with respect to top of rear apron → Gap Dimension X: 18 mm
Y - Work out gap at sides to the left and right uniformly → Gap Dimension Y: 18 mm
Z - Gap between tailpipes → Gap Dimension Z: 5 mm

Tailpipe - V8 naturally aspirated engine and basic variant

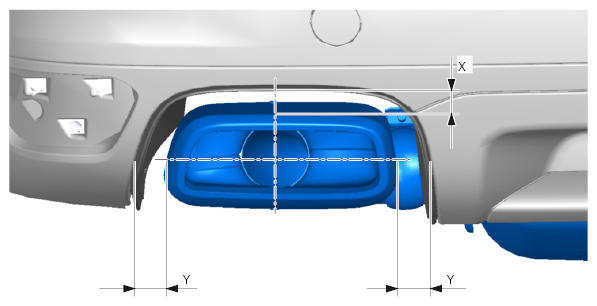

Fig 2: Identifying Tailpipe Gap Dimension - V8 Naturally Aspirated Engine And Basic Variant

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

X - Gap with respect to top of rear apron → Gap Dimension X: 20 mm
Y - Work out gap at sides to the left and right uniformly → Gap Dimension Y: 20 mm

Tailpipe, V6 engine

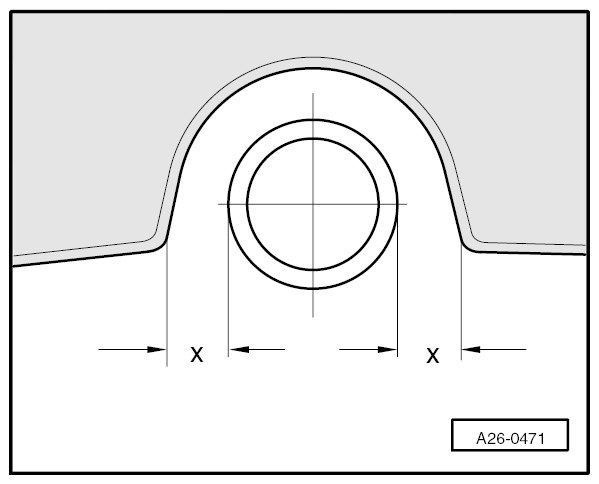

Fig 3: Identifying Tailpipe Gap Dimension - V6 Engine

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

X - Centre distance at the sides evenly to the left and right
