Replacing Rear Silencer

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

CAUTION: Heavy components

Risk of squashing

→ Wear personal protective gear.

→ Get someone to help if necessary.

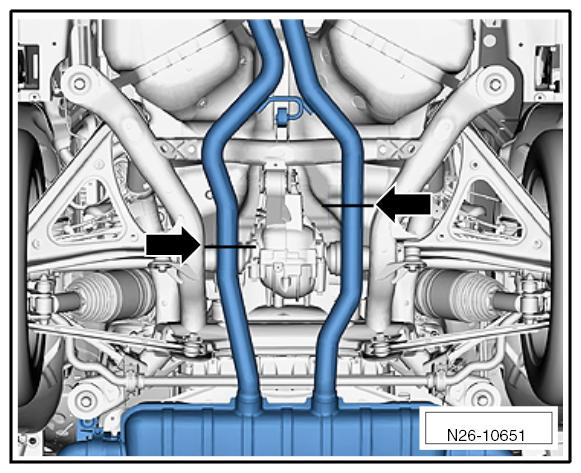

There is a small notch on the underside of the exhaust pipes that is level with the rear axle differential. The notch marks the connection point. -arrows-

Fig 1: Identifying Exhaust Pipe Connection Points
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

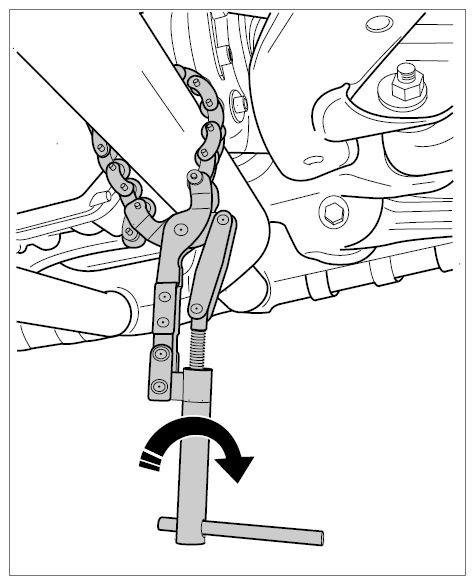

Place the pipe cutter chain Chain Pipe Cutter Nr. 166 or Ratchet Pipe Cutter Nr. 166-1 (or similar tool) around the exhaust pipe close to the connection point marking and engage it at the other end of the pipe cutter. Then clamp the chain firmly by turning the handle. → Placing pipe cutter chain around exhaust pipe

Fig 2: Placing Pipe Cutter Chain Around Exhaust Pipe
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

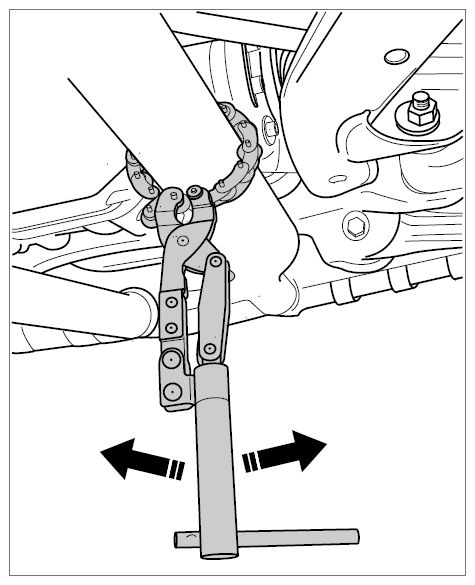

Swivel the pipe cutter to and fro in wide movements until the pipe is cut. While doing this, keep tightening the chain by turning the handle. → Cutting through pipe with pipe cutter

Fig 3: Cutting Through Pipe With Pipe Cutter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

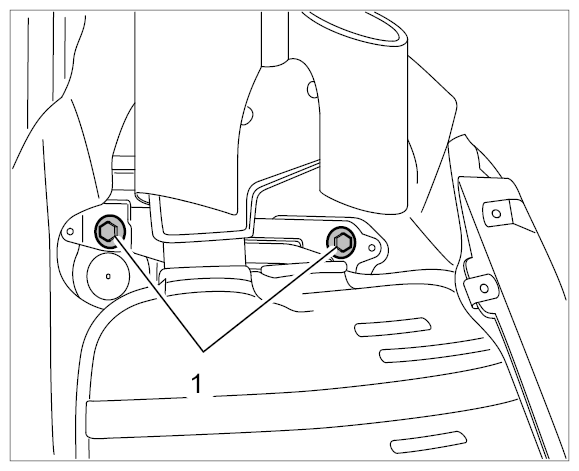

Remove rear holders for the rear silencer.
1. 4.1. Secure the rear silencer with the help of another person or a transmission jack.
2. 4.2. Unscrew two fastening screws -1- on each holder.
3. 4.3. Remove rear silencer.
Fig 4: Identifying Rear Silencer Holder Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Deburr cut on inside and outside of exhaust pipe. If necessary, remove rust from exhaust pipe using suitable polishing agents and manually restore to roundness.
Fit new suspension rubbers or holders if necessary.
Push new exhaust clamp onto exhaust pipe.
Lift the rear silencer into installation position with the help of another person or a transmission jack. Tighten two fastening screws -1- on each holder to the specified tightening torque. → Tightening Torque: 23 Nm (17 ft. lb.)

Fig 5: Identifying Rear Silencer Holder Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

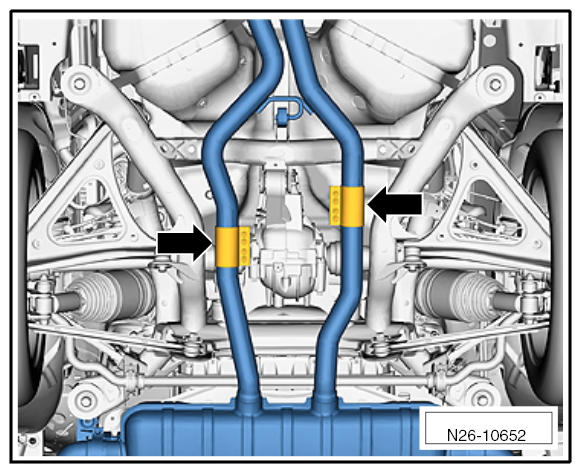

Position clamping sleeves in the center of the cutting location during installation.
Fit clamping sleeves in such a way that the ends of the screws do not protrude over the lower edge of the clamping sleeve. The clamping sleeve must not touch any other components, even when the exhaust system is moving quite significantly.

→ Tightening Torque: 33 Nm (24 ft. lb.)

Fig 6: Positioning Clamping Sleeves
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
