Removing Exhaust Manifold For Cylinder 1-3 (Front)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screw securing heat shield to intake-air distributor at the top and remove heat shield.
  2. Unscrew fastening nuts -right arrows-  used to secure the catalytic converter to the exhaust manifold for Cylinders 1-3  .
    Fig 1: Locating Catalytic Converter To Exhaust Manifold Nuts
    G09933761Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew fastening nuts -right arrow-  on the exhaust manifold for Cylinders 1-3  .
  4. Press exhaust manifold back and remove it.

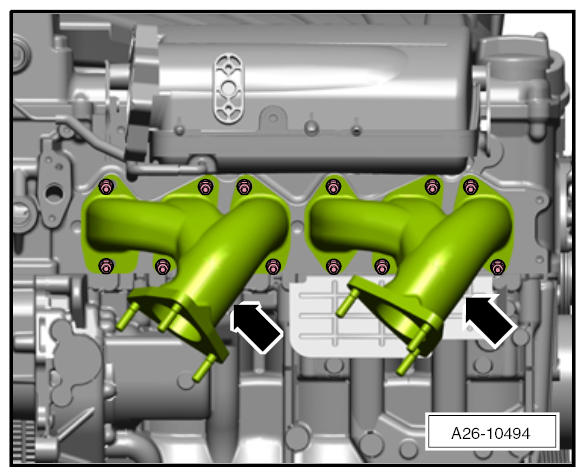

    Fig 2: Removing Exhaust Manifold
    G09933762Courtesy of PORSCHE CARS NORTH AMERICA, INC.
