WM 261019 Removing And Installing Exhaust Manifold (Cayenne): Information: Overview
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

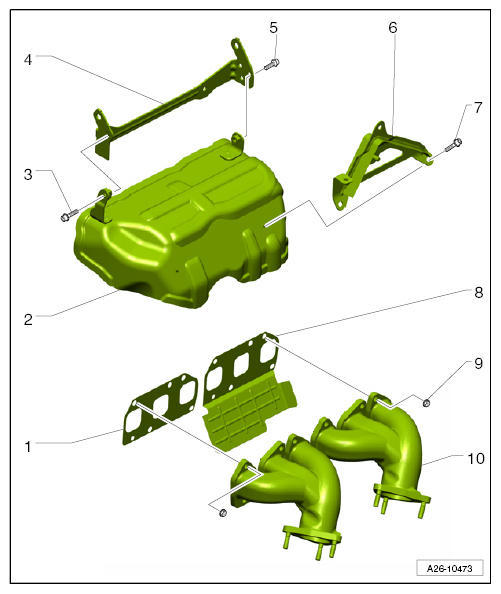

- Seal Replace
- Heat Shield
- Screw → Tightening Torque: 20 Nm (15 ft. lb.)
- Holder
- Screw → Tightening Torque: 20 Nm (15 ft. lb.)
- Holder
- Screw → Tightening Torque: 20 Nm (15 ft. lb.)
- Seal With Heat Shield Replace
- Nut Replace → Tightening Torque: 23 Nm (17 ft. lb.)
- Exhaust Manifold
