Removing Control Unit For Acoustic Simulator
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
- Never touch the electric pins and plug contacts .
- Pull carpet to the left and move it aside.

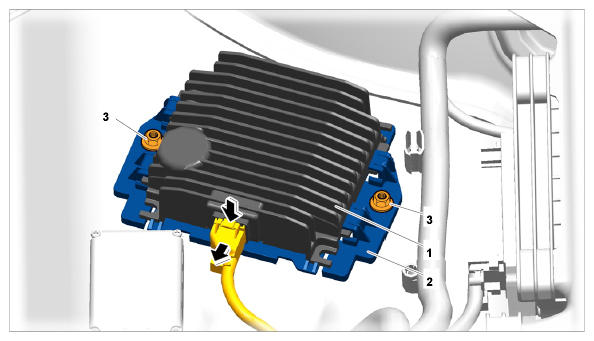

- Release electric plug connection -arrow- and disconnect it -arrow- .
- Unscrew and remove plastic nuts -3- .
- Remove control unit for acoustic simulator -1- with holder -2- .

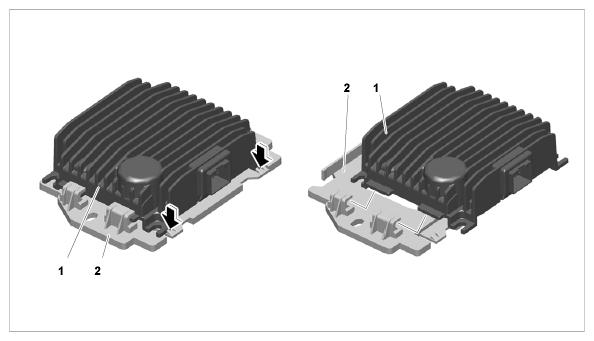

- Release locking lugs -arrow- and pull control unit for acoustic simulator -1- out of the holder -2- .
