Removing Exhaust System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

CAUTION: Heavy components

Risk of squashing

→ Wear personal protective gear.

→ Get someone to help if necessary.

Information

The pictures shown in this document may differ from the original .

Loosen fastening nuts -8- on the exhaust clamp (clamping sleeve) -3- between the catalytic converter and exhaust system. Slide exhaust clamps onto the exhaust system. Exhaust clamps must not be re-used.

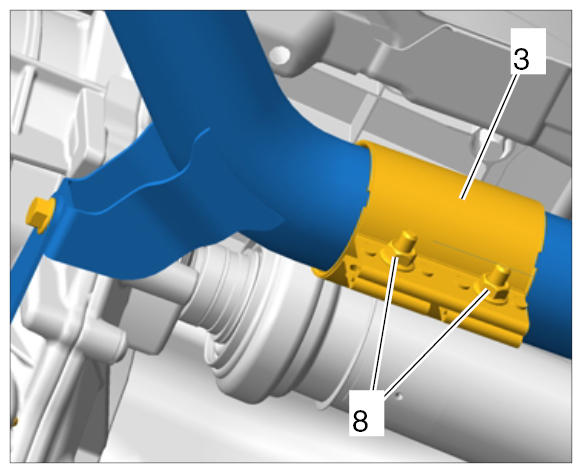

Fig 1: Loosening Clamp Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Get another person to help secure the exhaust system.
Unscrew fastening screw -6- on the center bracket -4- .

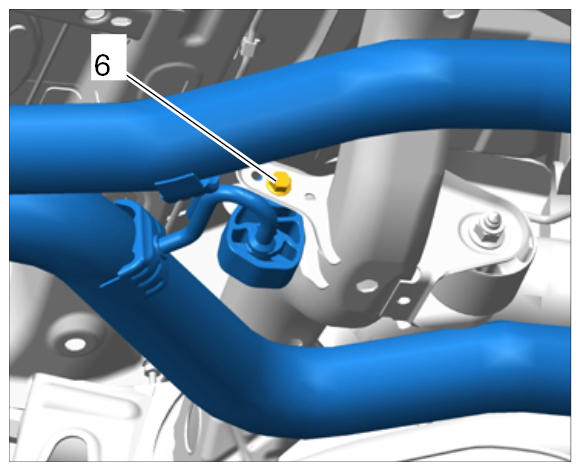

Fig 2: Loosening Centre Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew four fastening screws -7- from the brackets on the rear silencer -5- .

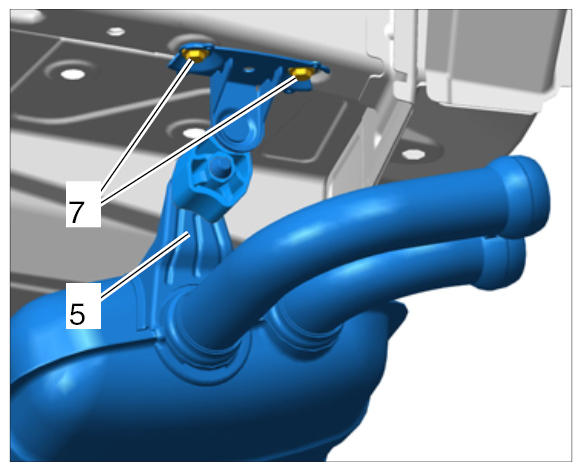

Fig 3: Removing Bracket On Rear Silencer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Get another person to help you remove the exhaust system.
