Installing Exhaust System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Tightening Torques, tightening sequence and assembly overviews for the engine and transmission:

Push new exhaust clamps (clamping sleeves) -3- onto the exhaust pipes. The threaded joint must be pointing downwards.

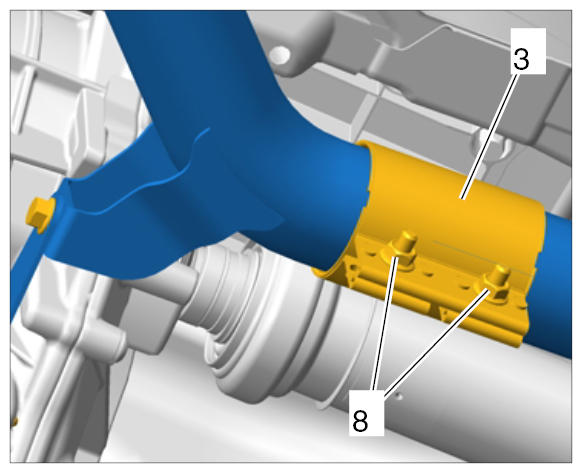

Fig 1: Fitting Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Get another person to help secure the exhaust system.
Position the exhaust system under the vehicle. Do not install too tightly.
Tighten four fastening screws for the brackets on the rear silencer.

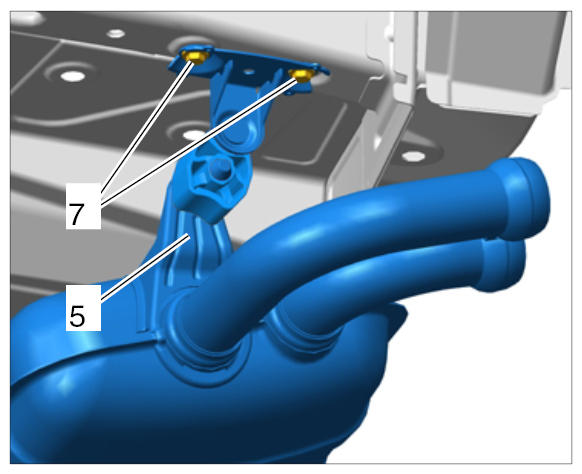

Fig 2: Securing Bracket On Rear Silencer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screw on the center bracket.

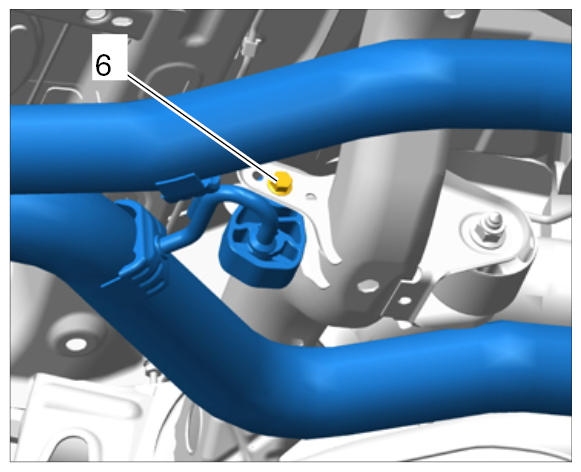

Fig 3: Tightening Centre Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The threaded joint on the exhaust clamps must be pointing downwards. Adjust to maximum inclination and ensure the assembly length is the same on both exhaust pipes. → see Fig 4→ Adjustment value: 10°

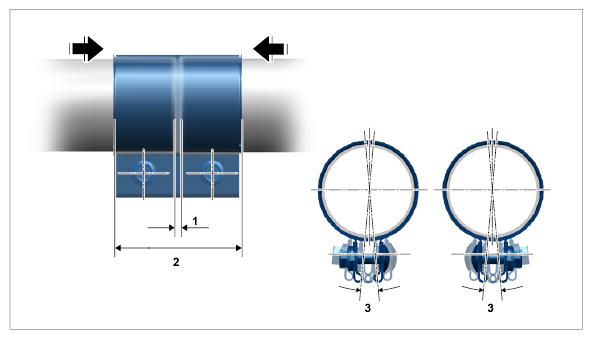

Fig 4: Identifying Exhaust Clamp Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Gap of approx. 5 mm between the exhaust pipes
2. Length of exhaust clamp
3. Maximum inclination
