Component Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

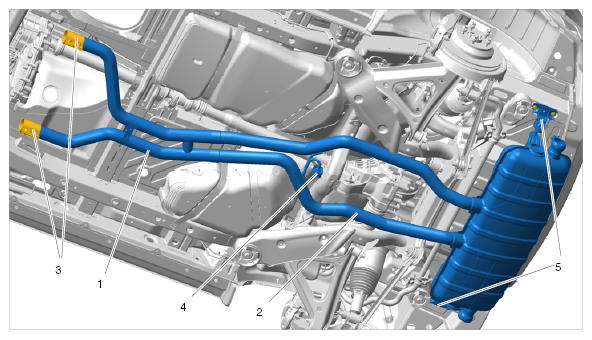

Fig 1: Identifying Exhaust System Components - V8 Naturally Aspirated Engines (Tailpipe Covers Not Shown)
G09933749Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Exhaust System
  2. Connection Point Marking
  3. Exhaust Clamps (Clamping Sleeves)
  4. Centre Bracket
  5. Bracket On Rear Silencer

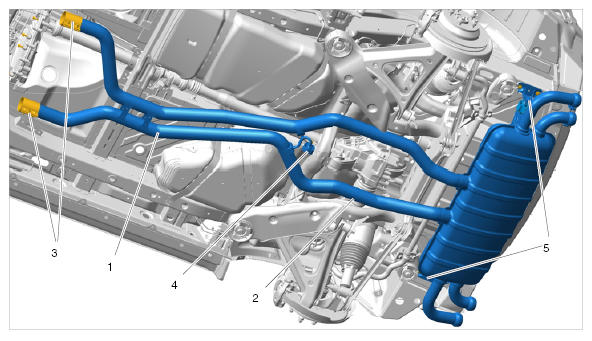

Fig 2: Identifying Exhaust System Components - V8 Turbo Engines (Tailpipe Covers Not Shown)
G09933750Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Exhaust System
  2. Connection Point Marking
  3. Exhaust Clamps (Clamping Sleeves)
  4. Centre Bracket
  5. Bracket On Rear Silencer
