Removing Fuse Element Group C In Power Distributor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Incorrect handling of safety bolts

Danger of injury
Loss of torque

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

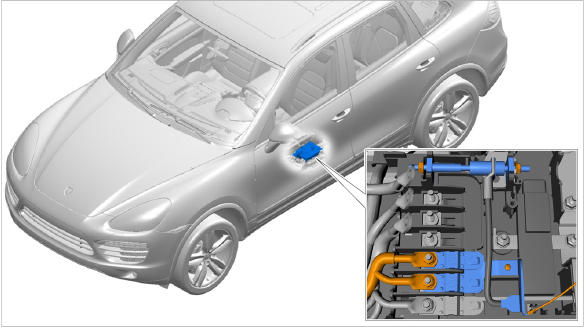

Fig 1: Identifying Installation Position Of Fuse Element Group C

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to loads or to the control unit

→ Disconnect the battery before removing the component or control unit.

Unclip plastic cover -1- and remove it by pulling it upwards.

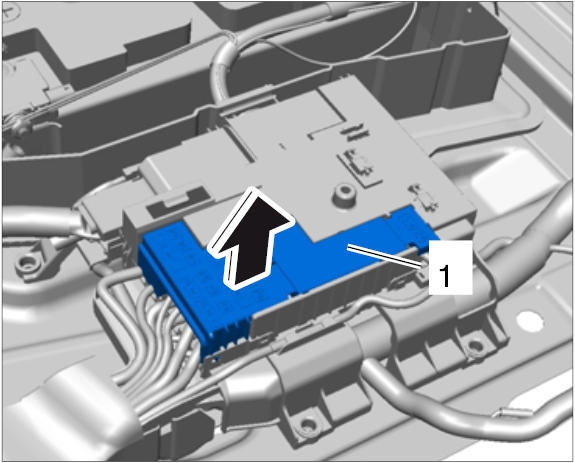

Fig 2: Unclipping Small Plastic Cover On Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening nut -2- .

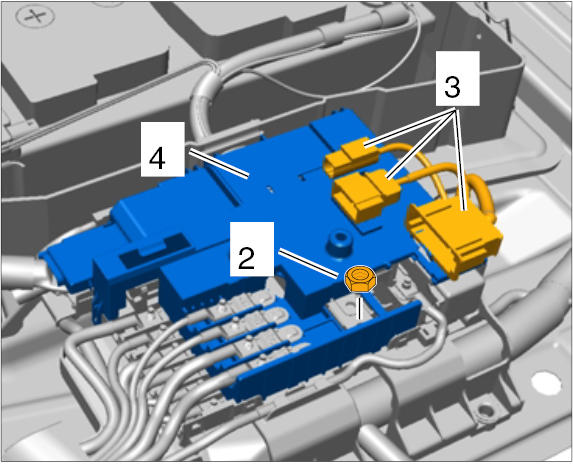

Fig 3: Identifying Fuse Fastening Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip battery safety switch.
Unclip electric plug connections -3- from holder for plastic cover -4- and set them aside.
Unscrew fastening screw -5- on the plastic cover -4- .

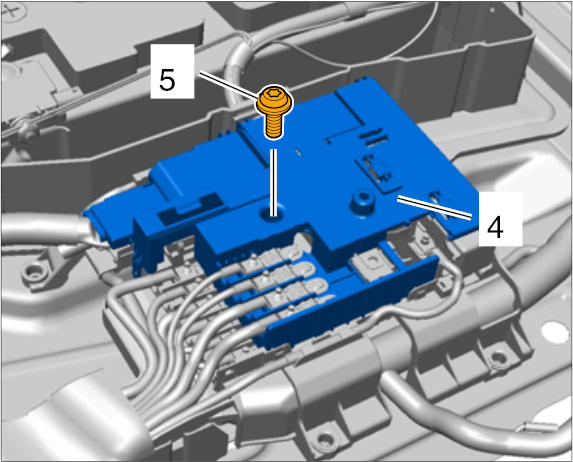

Fig 4: Identifying Fastening Screw On Plastic Cover For Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully unclip plastic cover -4- and turn it to the side.

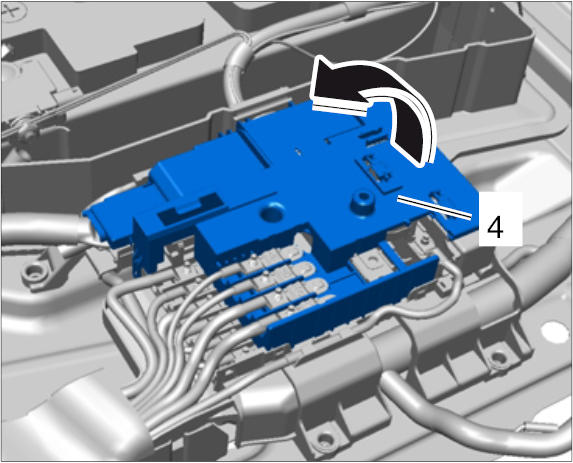

Fig 5: Turning Plastic Cover On Power Distributor To Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove fuse element group C .
1. 7.1. Unscrew fastening nuts -1- on electric lines -2- .

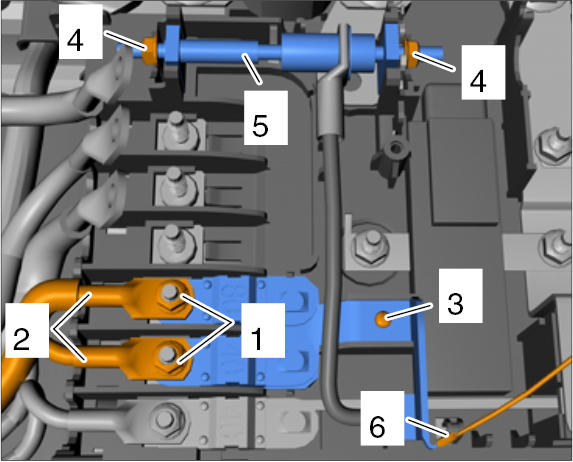

  Fig 6: Identifying Fuse Element Group C
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 7.2. Pull electric lines -2- up off the studs.
3. 7.3. Unscrew fastening screw -3- .
4. 7.4. Unscrew fastening nuts -4- and remove disconnect switch mechanism -5- by pulling it upwards.
5. 7.5. Unplug electric plug connection -6- .
6. 7.6. Pull disconnect switch mechanism -5- apart.

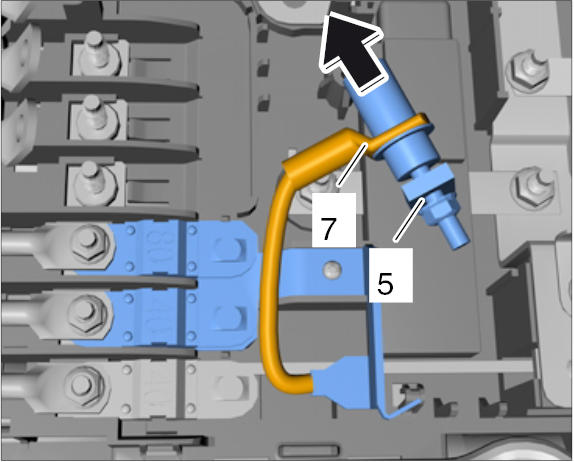

  Fig 7: Sliding Sleeve Out Of Mechanism
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. 7.7. Slide cable shoe and sleeve -7- out of the disconnect switch mechanism -5- (-arrow- ).
8. 7.8. Remove fuse element group C complete with safety fuses, power track and cable.

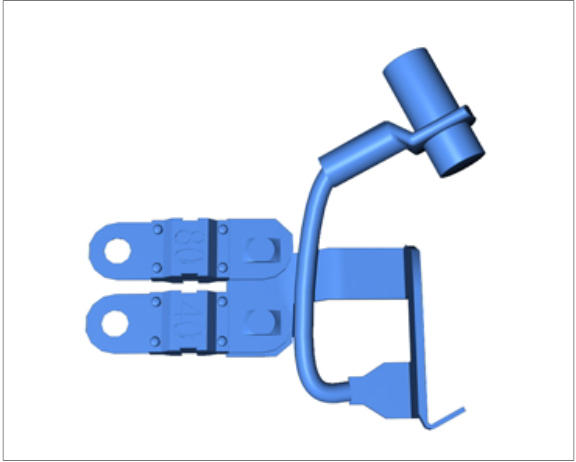

  Fig 8: Identifying Fuse Element Group C
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
