Installing Fuse Element In Power Distributor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. The fuse elements in the power distributor are installed in reverse order to removal.
  2. Tighten fastening nuts on safety fuses. Tightening Torque 16 Nm (12 ft. lb.)
  3. Tighten fastening screw -5-  on plastic cover -4-  . Tightening Torque 4 Nm (3 ft. lb.)

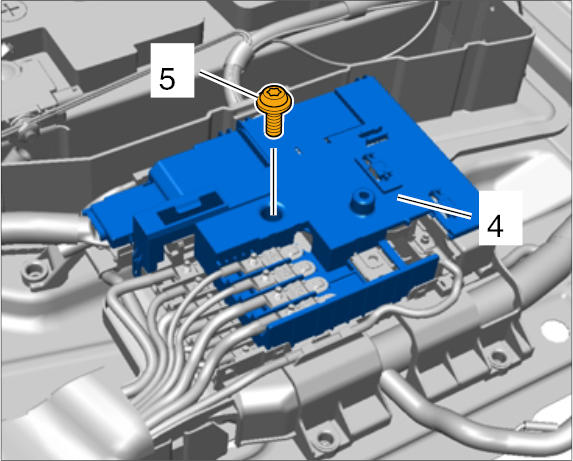

    Fig 1: Identifying Fastening Screw On Plastic Cover For Power Distributor
    G09942538Courtesy of PORSCHE CARS NORTH AMERICA, INC.
