Removing Fuse Element Group A In Power Distributor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Incorrect handling of safety bolts

Danger of injury
Loss of torque

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

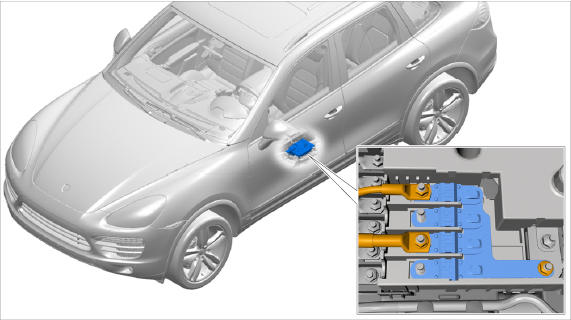

Fig 1: Identifying Installation Position Of Fuse Element In Power Distributor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to loads or to the control unit

→ Disconnect the battery before removing the component or control unit.

Fold up carpet and pull it aside.
Unclip the small plastic cover -1- and remove it by pulling it upwards.

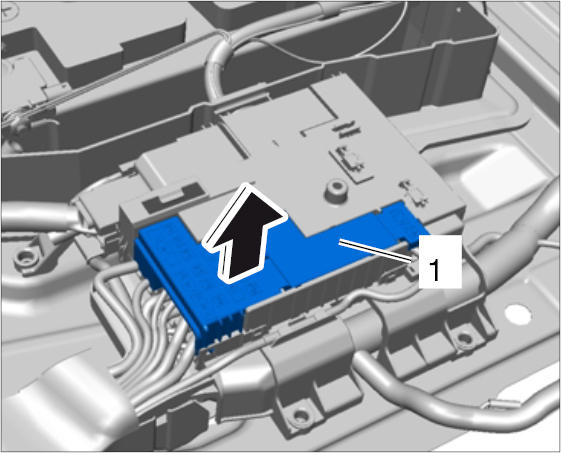

Fig 2: Unclipping Small Plastic Cover On Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove fuse element group A .
1. 3.1. Unscrew fastening nut -1- on fuse element group A .

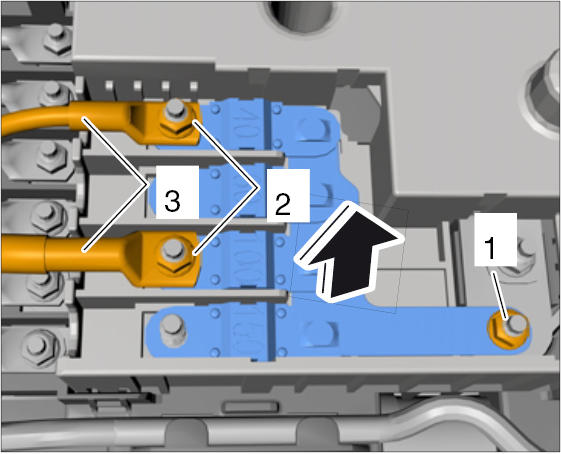

  Fig 3: Removing Fuse Element Group A
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Unscrew fastening nuts -2- on electric lines -3- .
3. 3.3. Pull electric lines -3- up off the studs.
4. 3.4. Remove fuse element group A complete with power track.

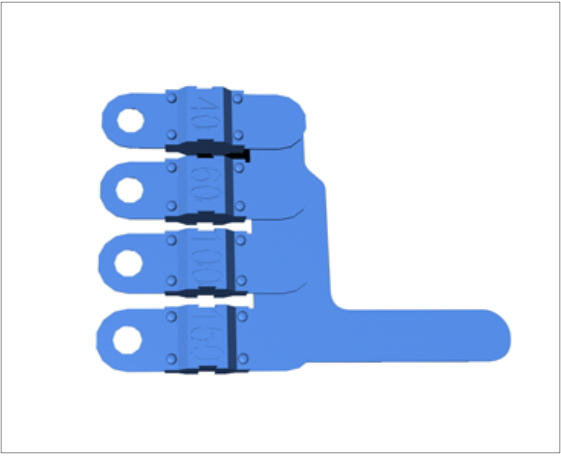

  Fig 4: Identifying Fuse Element Group A
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
