Removing Power Distributor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to loads or to the control unit

→ Disconnect the battery before removing the component or control unit.

WARNING: Incorrect handling of safety bolts

Danger of injury
Loss of torque

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

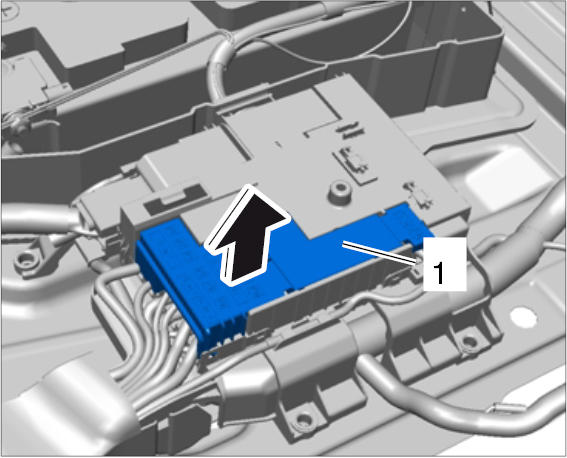

Unclip plastic cover -1- and remove it by pulling it upwards.

Fig 1: Unclipping Small Plastic Cover On Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip battery safety switch.

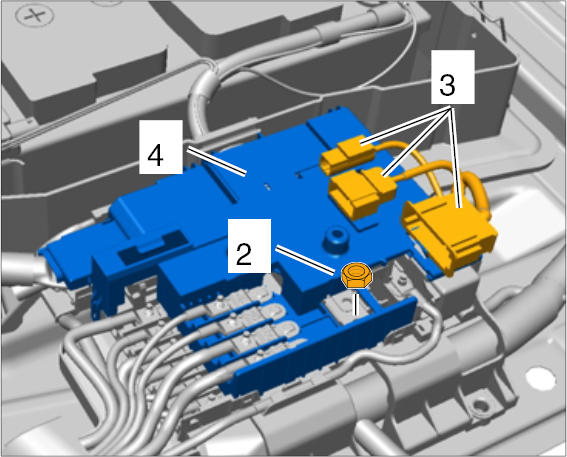

Unclip electric plug connections -3- from holder for plastic cover -4- and set it aside.

Fig 2: Identifying Plug Connections On Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw off nut -2- and remove cable shoe from power distributor.

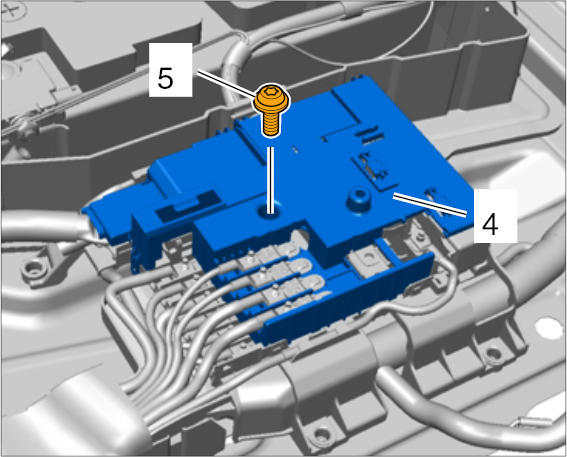

Unscrew fastening screw -5- on the plastic cover -4- .

Fig 3: Unscrewing Fastening Screw On Plastic Cover For Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

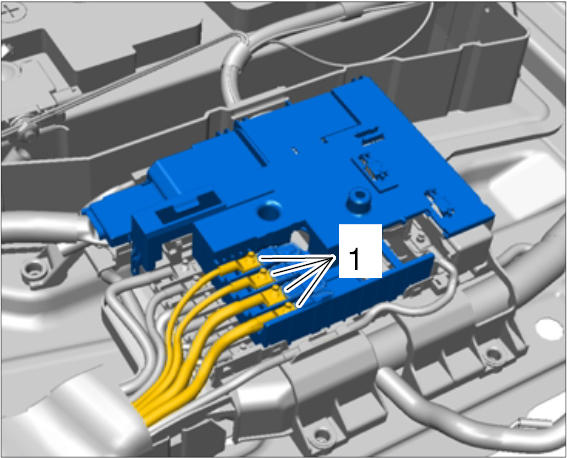

Unscrew nuts -1- on cable shoes and remove cable shoe from power distributor.

Fig 4: Identifying Power Distributor Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

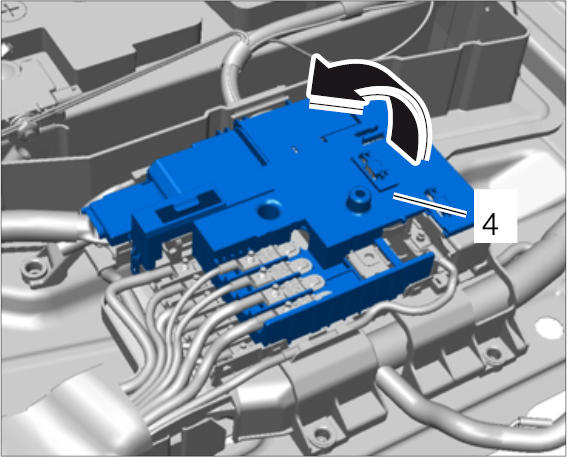

Carefully unclip plastic cover -4- and turn it to the side.

Fig 5: Turning Plastic Cover On Power Distributor To Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

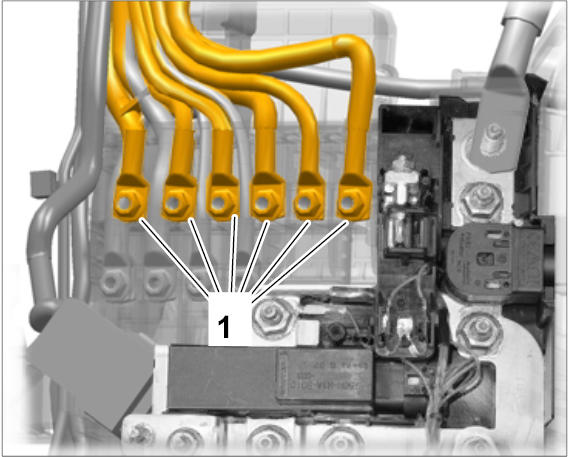

Unscrew nuts -1- on cable shoes and remove cable shoe from power distributor.

Fig 6: Identifying Power Distributor Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

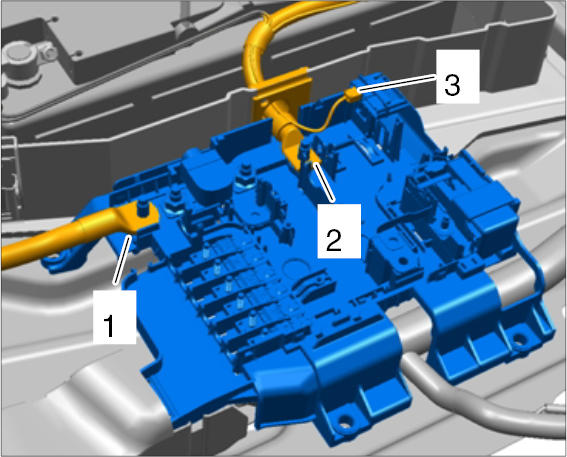

Unscrew nuts -1, 2- on the ground and B+ lines and remove lines from power distributor.

Fig 7: Identifying Lines At Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and disconnect electric plug connection for battery sensor -3- .

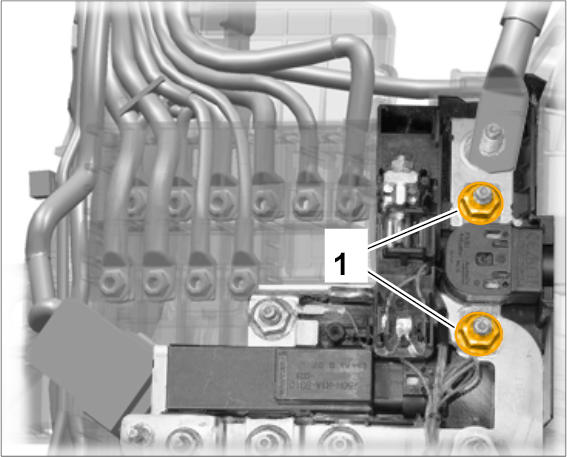

Unscrew nuts -1- and remove pyrotechnical fuse from power distributor.

Fig 8: Identifying Pyrotechnical Fuse
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

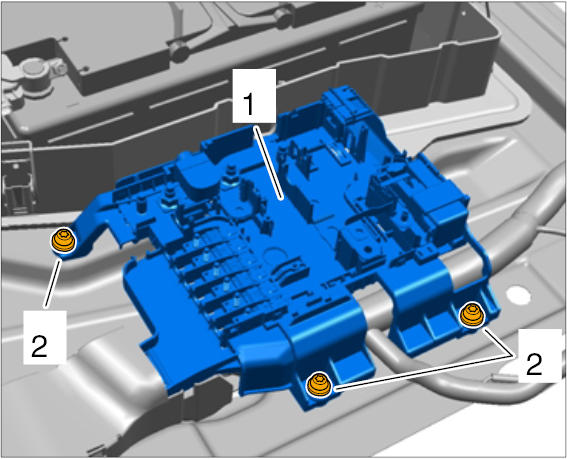

Unscrew nuts -2- and remove power distributor box -1- .

Fig 9: Removing Power Distributor And Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
