Installing Power Distributor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Installation is performed in reverse order.

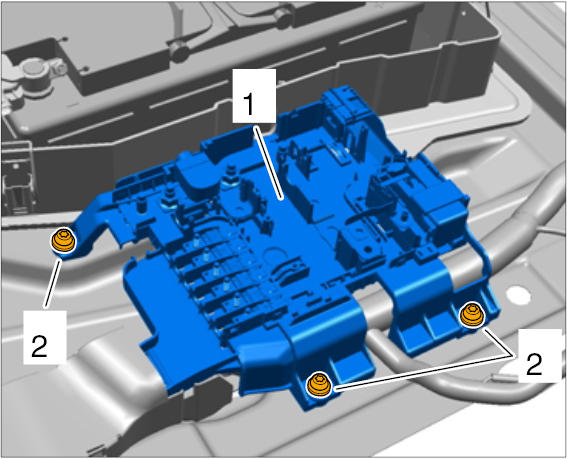

Tighten nuts -2- on the power distributor -1- . Tightening Torque 8 Nm (6 ft. lb.)

Fig 1: Identifying Power Distributor And Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

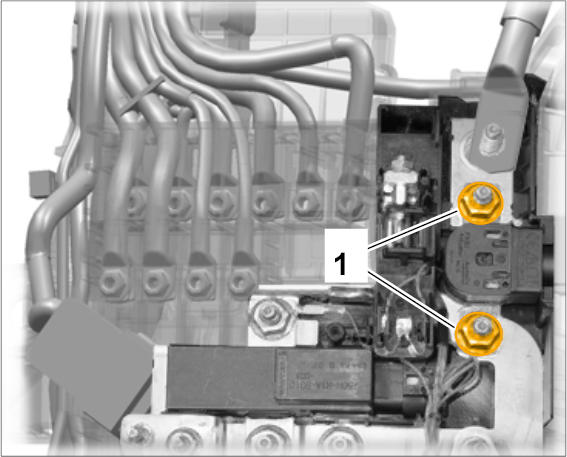

Tighten nuts -1- . Tightening Torque 15 Nm (11 ft. lb.)

Fig 2: Identifying Pyrotechnical Fuse
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

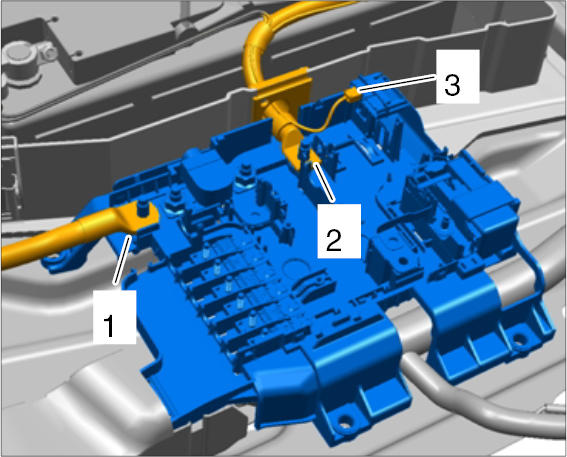

Tighten nuts -1, 2- securing ground and B+ lines. Tightening Torque 15 Nm (11 ft. lb.)

Fig 3: Identifying Lines At Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

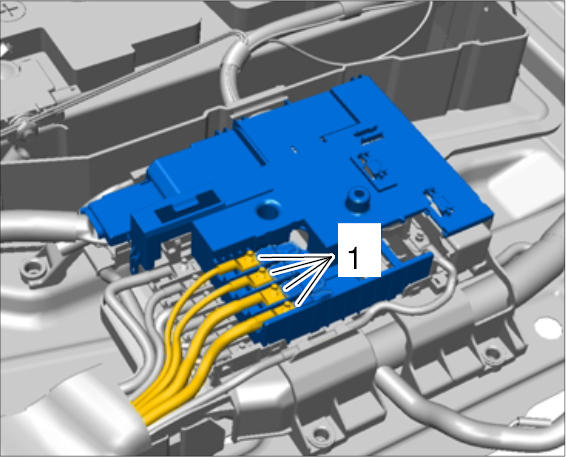

Tighten nuts -1- . Tightening Torque 3 Nm (2 ft. lb.)

Fig 4: Identifying Power Distributor Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

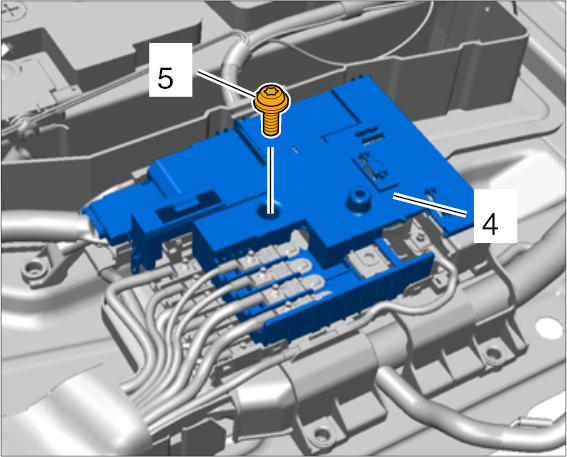

Tighten fastening screw -5- on plastic cover -4- . Tightening Torque 4 Nm (3 ft. lb.)

Fig 5: Identifying Fastening Screw On Plastic Cover For Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten nuts -1- . Tightening Torque 3 Nm (2 ft. lb.)

Fig 6: Identifying Power Distributor Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

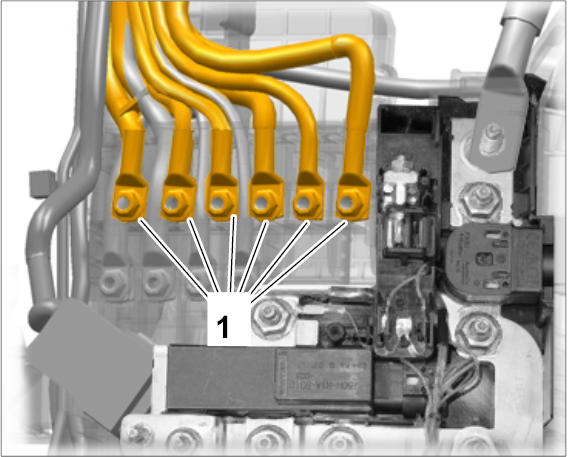

Tighten nut -2- . Tightening Torque 5.9 Nm (4.5 ft. lb.)

Fig 7: Identifying Power Distributor Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
