Loosening Ground Strap For Battery

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw off ground strap at the ground point in front of the driver's seat:
  2. Risk of short circuit! Screw off the ground strap -2-  at the ground point -1-  under the driver's seat in front of the battery box.

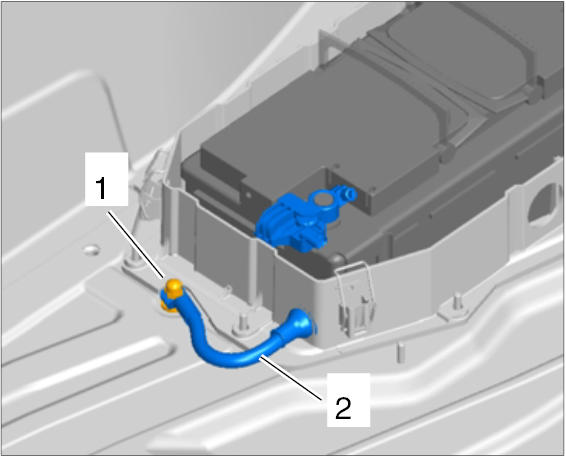

    Fig 1: Identifying Ground Point
    G09942449Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Route or isolate the ground strap -2-  so that all contact with a ground carrier (e.g. body, battery terminal) is avoided.
