Removing Optical Contacts On Connector Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Use Release Tool Set WE 1623 to open the secondary lock. Guide the tool into the opening provided and lift the locking mechanism. The locking mechanism engages in the upper position.

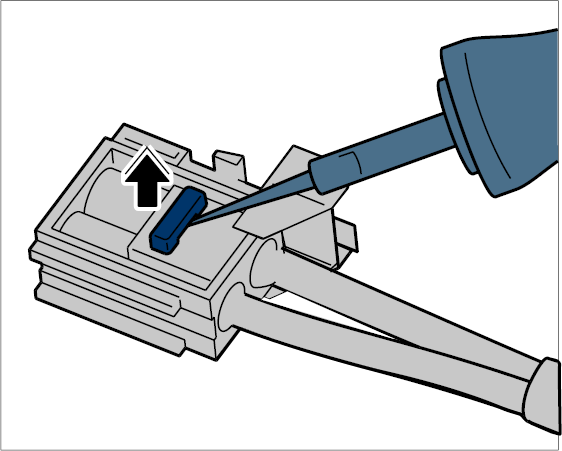

Fig 1: Unlocking Secondary Lock Of Optical Contacts (Connector Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release Tool Set WE 1623 must be positioned on the primary lock. Then lift up the locking mechanism.
1. Optical Contact, Grey
2. Optical Contact, Black

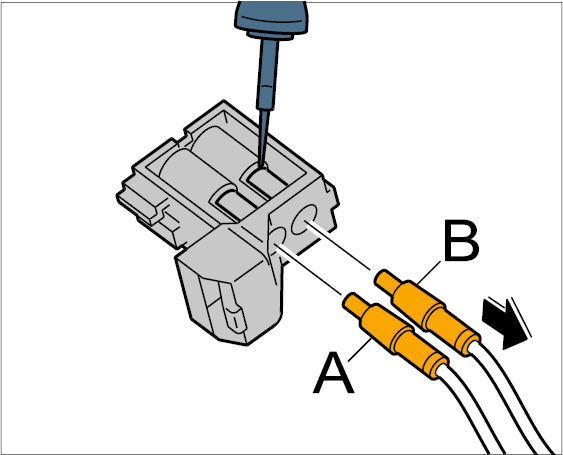

  Fig 2: Unlocking Primary Lock Of Optical Contacts (Connector Side)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully pull on the optical waveguides -A and B- in -direction of arrow- . If it is not possible to pull them out, check again that the secondary lock is completely unlocked and that the primary lock is raised sufficiently.
Visually inspect the locking mechanisms, connector housing and contacts for possible damage and replace damaged parts if necessary.
