Disconnecting Optical Waveguide

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

Before routing a new optical waveguide:

Visually check the locks, connector housing and contacts for damage .
Replace damaged parts if necessary .

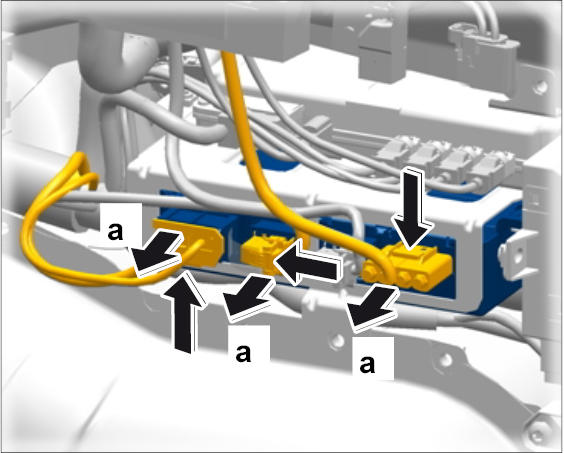

Release plug connection for optical waveguide (left plug connection) from the TV tuner -arrow- and disconnect it -arrow a- .

Fig 1: Releasing And Disconnecting Electric Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

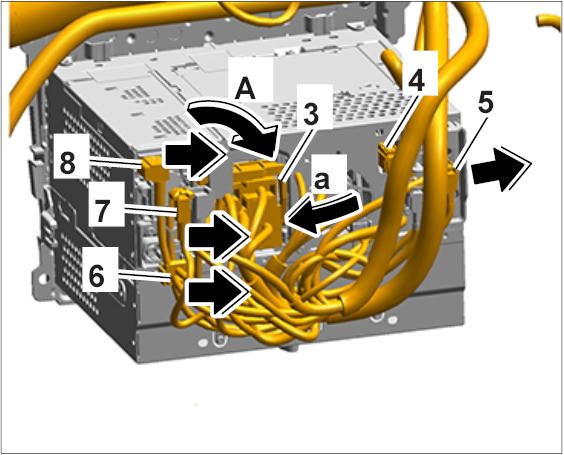

Release plug connection for optical waveguide -3- at the PCM system -arrow a- and disconnect it -arrow A- . Release and disconnect electric plug connections -4, 5, 6, 7, 8- .

Fig 2: Unplugging Optical Waveguide From PCM
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
