Installing Optical Contacts On Connector Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove dust boot right before connecting contacts.

Check the condition of the contacts.

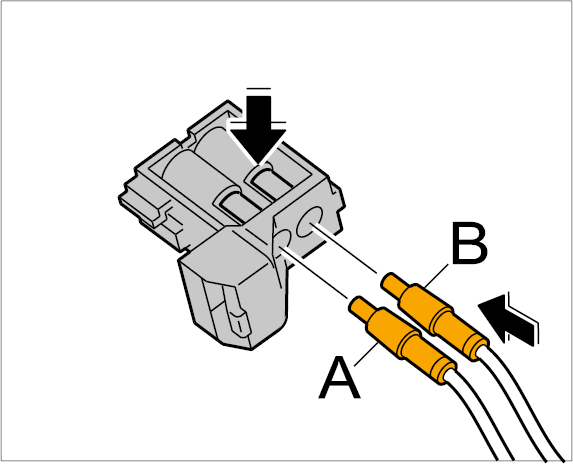

Push optical contacts -A and B- into the connectors until they engage securely.
1. Optical Contact, Grey
2. Optical Contact, Black

  Fig 1: Locking Primary Lock Of Optical Contacts (Connector Side)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

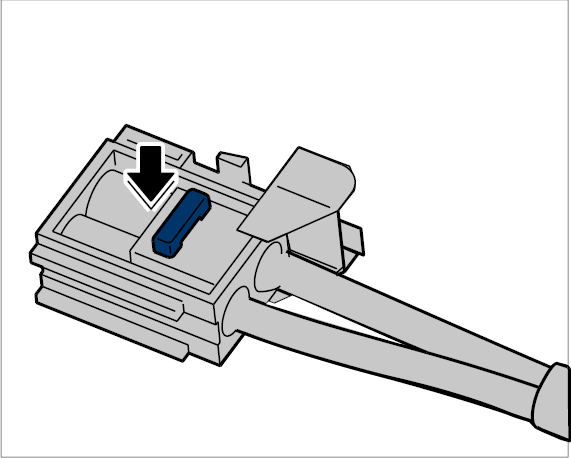

Close the secondary lock and check that the optical contacts are seated securely.

Fig 2: Locking Secondary Lock Of Optical Contacts (Connector Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
