Removing Wire Harness For Front ABS

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

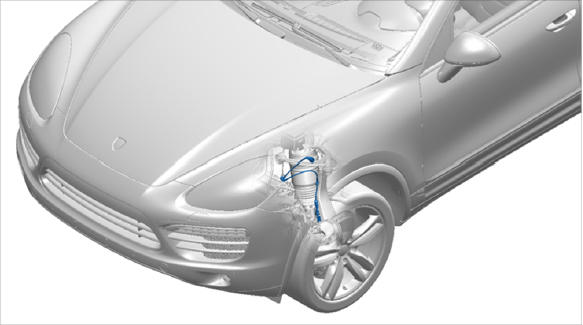

Fig 1: Identifying Installation Position Of Wire Harness For Front ABS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release electric plug connection for brake pad wear indicator -a- and pull it off -A- .

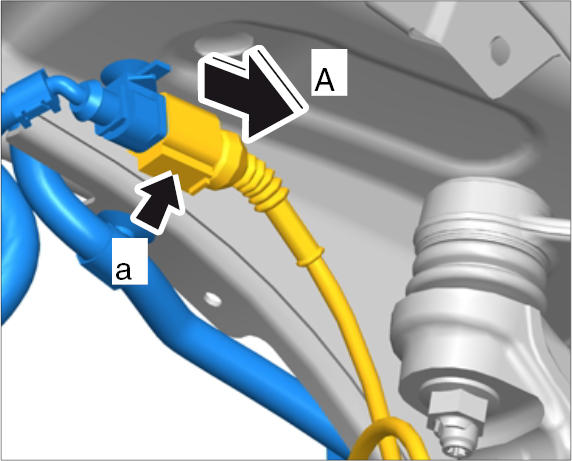

Fig 2: Disconnecting Connector For Brake Pad Wear Indicator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

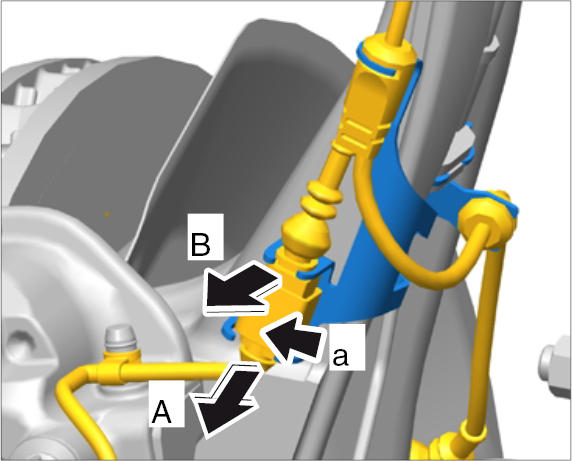

Unclip connector for brake pad wear indicator from the bracket -B- .
Release electric plug connection for RPM sensor -a- and pull it off -A- .

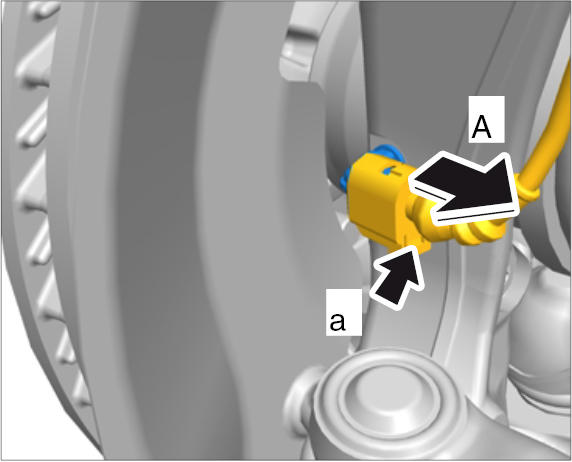

Fig 3: Disconnecting Connector For RPM Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip wire harness from the brackets in direction of arrow -arrow- .

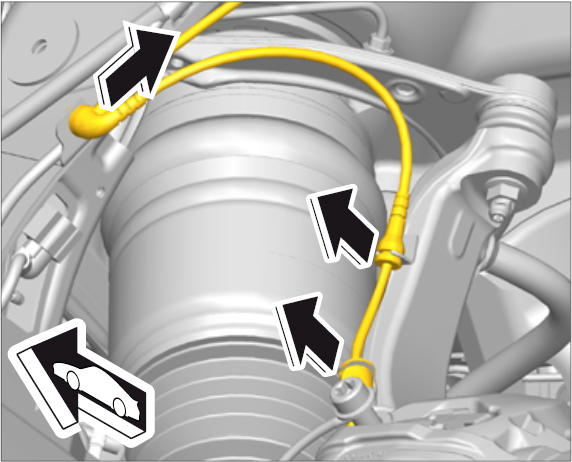

Fig 4: Unclipping Front ABS Wire Harness From Brackets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric plug connection for connection point -a- and pull it off -A- .

Fig 5: Disconnecting Connector For Front ABS Connection Point
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
