Installing Wire Harness For Front ABS

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

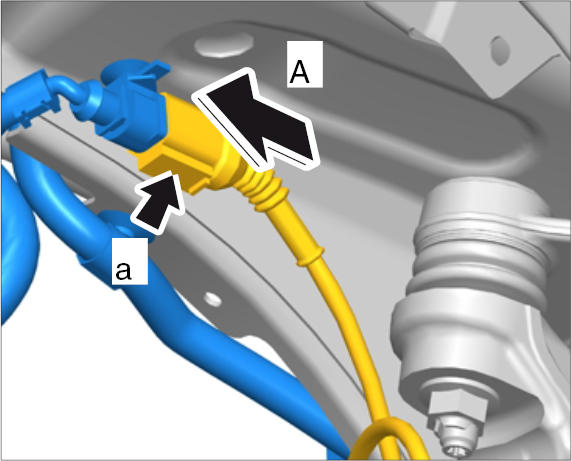

Plug in electric plug connection at the connection point -A- and lock it -a- .

Fig 1: Plugging In Connector For Front ABS Connection Point
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

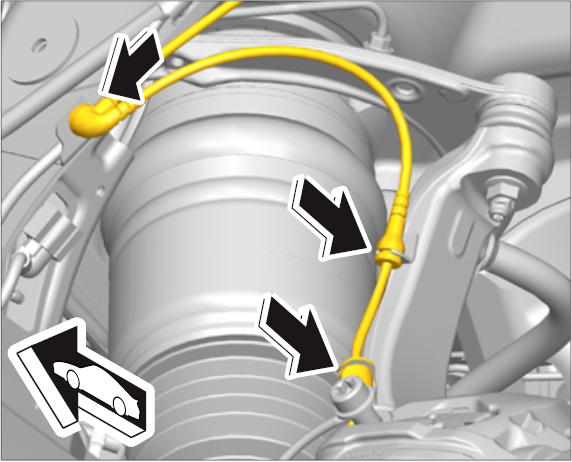

Clip wire harness into the brackets in direction of arrow -arrow- .

Fig 2: Clipping Wire Harness For Front ABS Into Brackets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

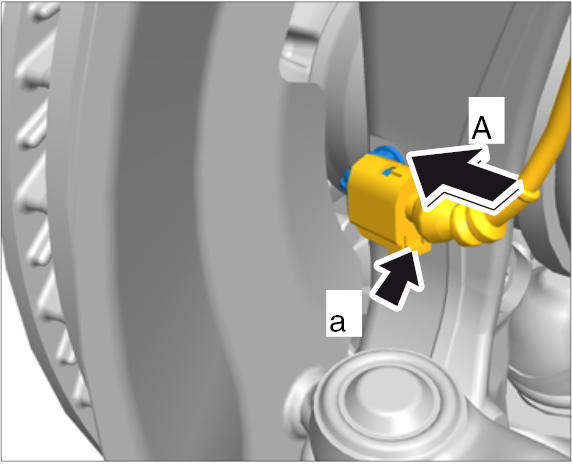

Plug in electric plug connection for RPM sensor -A- and lock it -a- .

Fig 3: Plugging In Connector On RPM Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

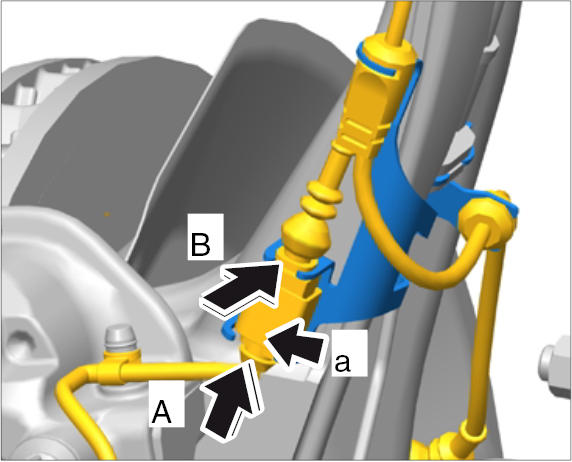

Clip connector for brake pad wear indicator into the bracket -B- .

Fig 4: Plugging In Connector For Brake Pad Wear Indicator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connection for brake pad wear indicator -A- and lock it -a- .
