Removing Wire Harness For Power Seats

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
Never touch the electric pins and plug contacts .

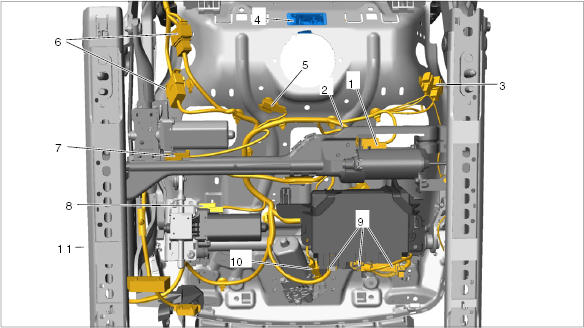

Fig 1: Identifying Installation Position Of Wire Harness For Power Seats
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Connector For Seat Adjustment Motor
2. Connector For Seat Heating
3. Connector For Belt Lock
4. Connector For Footwell Light
5. Connector For Backrest Heating
6. Connectors For Backrest Wire Harness (Two Connectors)
7. Connector For Motor For Rear Vertical Adjustment
8. Connector For Motor For Front Vertical Adjustment
9. Connectors For Control Unit For Memory Seat Adjustment (Three Connectors)
10. Connector For Motor For Seat Fore-And-Aft Adjustment
11. Connector For Seat Adjustment Motor

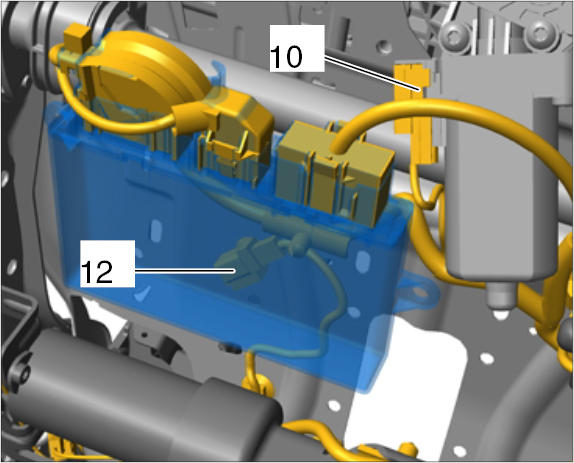

Fig 2: Identifying Connector Under Control Unit For Memory Seat Adjustment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 10 - Connector For Motor For Seat Fore-And-Aft Adjustment
2. 12 - Connector For Seat Occupancy Detection

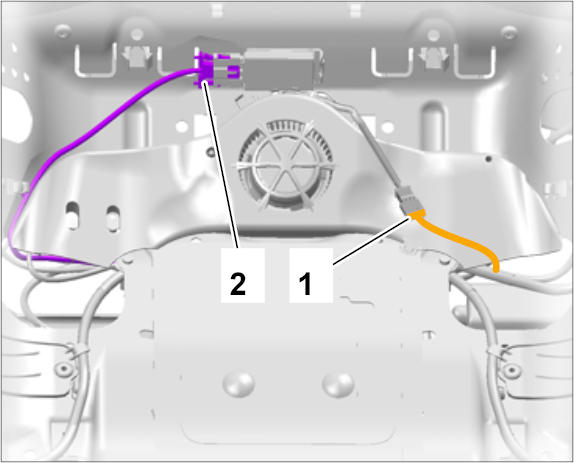

Fig 3: Identifying Electric Plug Connections Under Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting Electric Plug Connections:

Release and disconnect electric plug connection -1- for suction fan for seat surface.
Release and disconnect electric plug connection -2- for footwell lighting and release wire harness from the seat frame.
Release and disconnect electric plug connection -1- for seat adjustment motor.
Unclip bracket for seat heating connector -2- from the seat frame.
Release and disconnect electric plug connection -3- for the belt lock. → 692419 REMOVING AND INSTALLING FRONT BELT LOCK
Unclip bracket for belt lock connector -3- from the seat frame.
Release and disconnect electric plug connection -5- for backrest heating. → 721919 REMOVING AND INSTALLING FRONT BACKREST FRAME
Unclip bracket for connector for backrest heating -5- from the seat frame.
Release and disconnect electric plug connections -6- for backrest wire harness (2 connectors). → 721919 REMOVING AND INSTALLING FRONT BACKREST FRAME
Unclip two brackets for connectors for backrest wire harness -6- from the seat frame.
Release and disconnect electric plug connection -7- for motor for rear vertical adjustment.
Release and disconnect electric plug connection -8- for motor for front vertical adjustment.
Release and disconnect electric plug connections -9- for control unit for memory seat adjustment (three connectors). → 729319 REMOVING AND INSTALLING CONTROL UNIT FOR MEMORY SEAT ADJUSTMENT
Unscrew fastening screw on bracket for control unit for memory seat adjustment and seat-surface extension and remove bracket from the catches on the seat frame. → 740819 REMOVING AND INSTALLING FRONT SEAT-SURFACE EXTENSION
If fitted:
Release and disconnect electric plug connection -12- for seat occupancy detection.
Unclip bracket for connector for seat occupancy detection -12- from the seat frame.
Loosening fastening points:
Disconnect electric line from bracket -1- on seat adjustment motor.

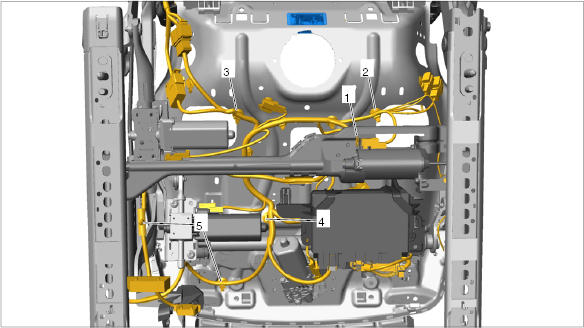

Fig 4: Identifying Fastening Points On Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip fixing clips -2 - 5- .
Disconnect electric line from bracket -6- on control unit.

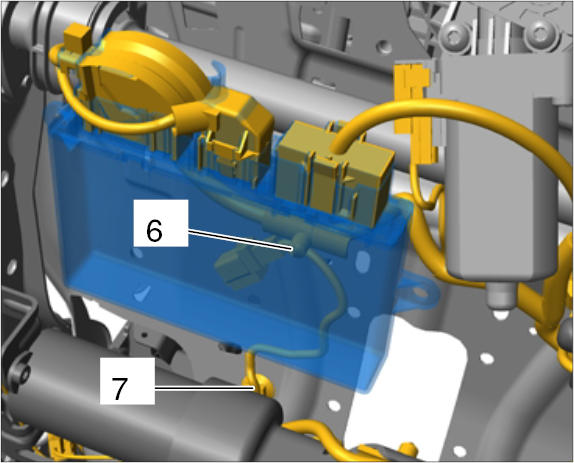

Fig 5: Identifying Fastening Points Under Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip fixing clip -7- .
