Removing Wiring For Backrest
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Switch off ignition and remove remote control before disconnecting or removing load.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
- Never touch the electric pins and plug contacts
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

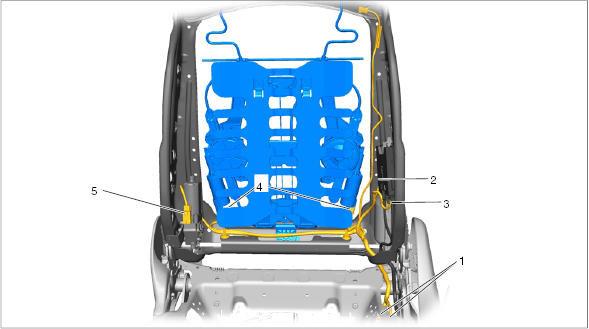

- Two Connectors For Backrest Wire Harness
- Connector For Motor For Air Cushion
- Connector For Control Valve For Air Cushion
- Two Connectors For Lumbar Support
- Connector For Motor For Backrest Adjustment
- Release and disconnect two electric plug connections -1- for the backrest wire harness. → 721919 REMOVING AND INSTALLING FRONT BACKREST FRAME
- Release and disconnect electric plug connection -2- for the air cushion motor. → 723919 REMOVING AND INSTALLING MOTOR FOR AIR CUSHION
- Unscrew two fastening screws for the backrest air cushion. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR FRONT BACKREST
- Release and disconnect electric plug connection -3- for control valve for air cushion. → 723819 REMOVING AND INSTALLING CONTROL VALVE FOR AIR CUSHION
- Release and disconnect two electric plug connections -4- for lumbar support. → 723419 REMOVING AND INSTALLING LUMBAR SUPPORT
- Release and disconnect electric plug connection -5- for motor for backrest adjustment.

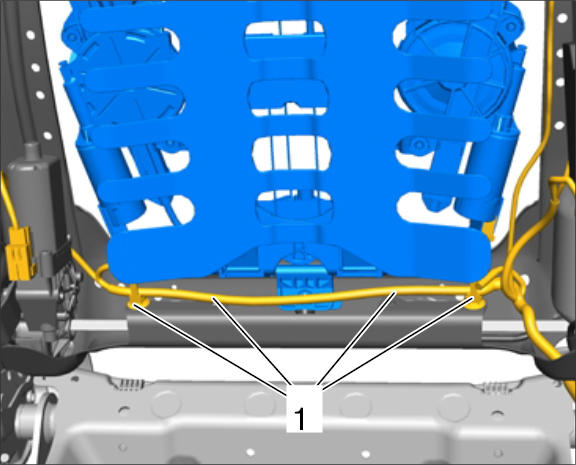

- Cut open tie-wrap -1- on the backrest frame.
