Installing Wiring For Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

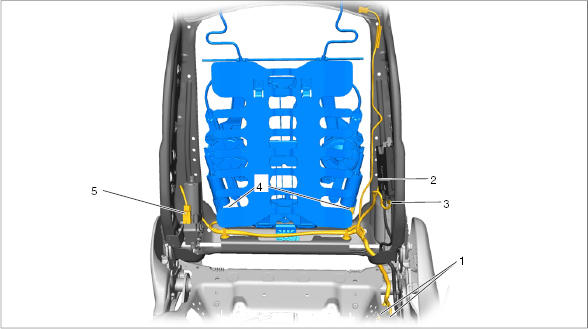

Fig 1: Identifying Installation Position Of Wire Harness For Backrest
G09942386Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Two Connectors For Backrest Wire Harness
  2. Connector For Motor For Air Cushion
  3. Connector For Control Valve For Air Cushion
  4. Two Connectors For Lumbar Support
  5. Connector For Motor For Backrest Adjustment
  1. First fit the wire harness loosely in the backrest, ensuring that it is positioned correctly.
  2. Fit tie-wrap -1-  .

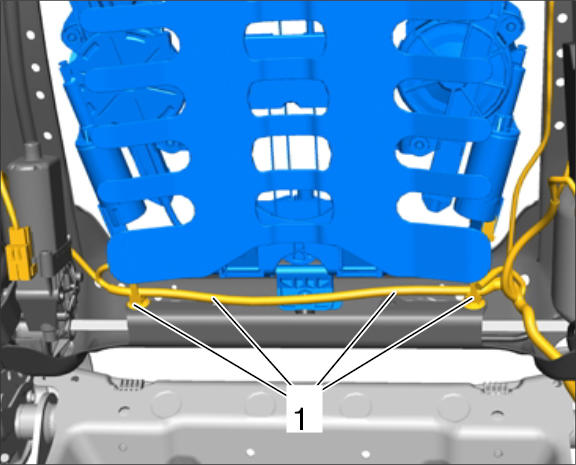

    Fig 2: Identifying Fitting Tie-Wrap
    G09942387Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Plug in electric plug connections -1 - 5-  until the connectors engage securely.
  4. Screw in two fastening screws for the backrest air cushion. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR FRONT BACKREST
