Installing Wire Harness For Engine

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

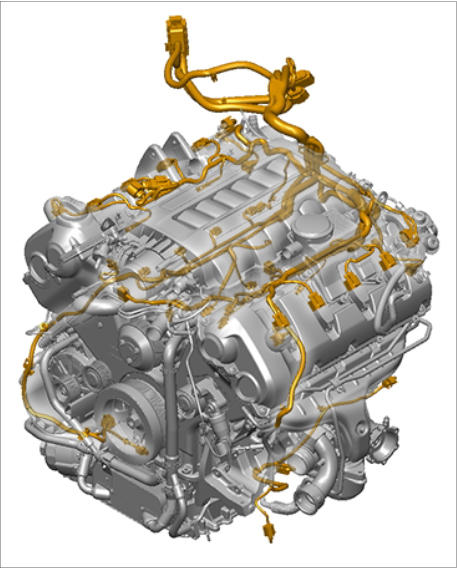

Fig 1: Identifying Installation Position Of Engine Wire Harness

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

First lay the wire harness loosely on the engine.
Pay attention to the correct positioning when doing so: The vehicle/engine connection point as well as the plug connection for the DFI control unit are in the rear of the engine compartment, on the right in the direction of travel.

Each cylinder head has an inner and an outer harness.
When laying out, make sure that the individual wiring harnesses do not become twisted or entangled.
Loosely bolt the cable ducts onto the cylinder heads and on the right control box.
Insert the plug connections and clip the individual wiring harnesses in place.
When doing so, proceed in reverse order to removal:
1. 4.1. Insert plug connections for top of engine .
2. 4.2. Insert plug connections for rear of engine .
3. 4.3. Insert plug connections for front of engine .
4. 4.4. Insert plug connections for bottom right of engine .
5. 4.5. Insert plug connections for bottom left of engine .
Screw down cable guide ducts.
Tighten fastening nut on ground point until secure. Tightening Torque 9 Nm (6.5 ft. lb.)
Tighten fastening screws for the ground points until secure. Tightening Torque 10 Nm (7.5 ft. lb.)
