Removing Wire Harness From Battery To Power Distributor (HSB)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Caustic fluids

Danger of chemical burns

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

WARNING: Static battery charge

Battery can explode
Electrical discharges

→ Do not rub the battery with a dry cloth.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
Never touch the electric pins and plug contacts .

Information

The battery is located in the battery case under the left front seat .
The vehicle must be supplied with external power at the jump lead starting points so that the seat can be moved even when the battery is completely discharged. → External power connection, jump lead starting

Information

Switch off all loads and remove the ignition key.

Do not disconnect the battery while the engine is running .
Disconnect and reconnect battery with extreme caution .
Do not rub the battery with a dry cloth .

To remove the battery for the first time, cut the carpeted floor along the perforation using a carpet knife.
Open the tension hooks on the battery case cover using a screwdriver.
Remove the battery case cover.

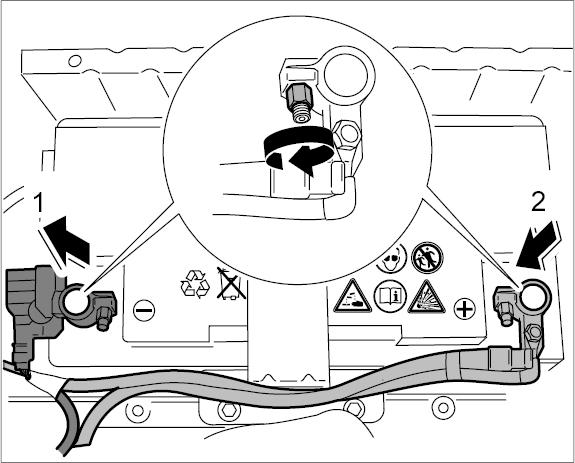

Loosen fastening nut on positive terminal -2- of battery and pull line off the battery terminal.

Fig 1: Disconnecting Terminal Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

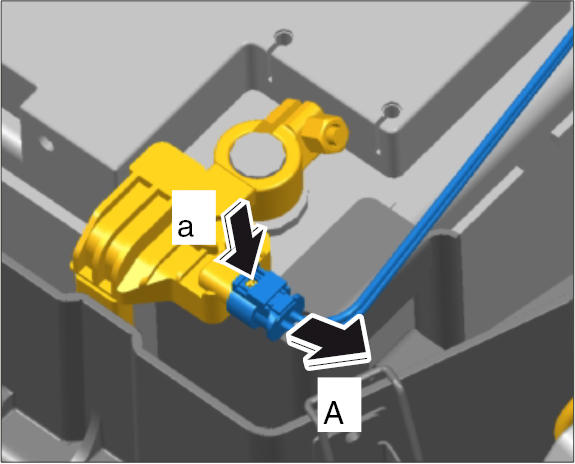

Release electric plug connection on the battery sensor -a- and pull it off -A- .

Fig 2: Pulling Off Connector At Negative Terminal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

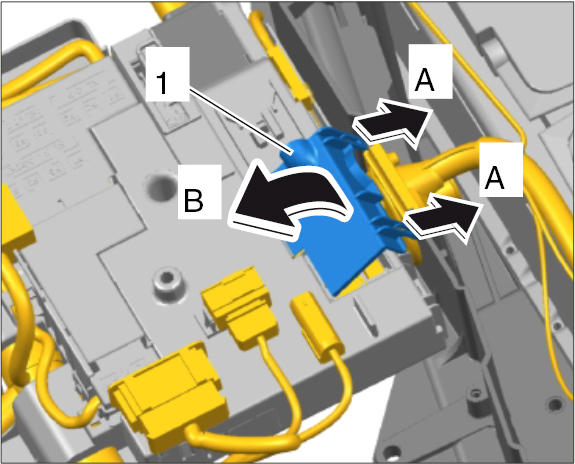

Unclip locking mechanism -A- and open the cover on the power distributor -1- (-B- ).

Fig 3: Opening Cover On Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

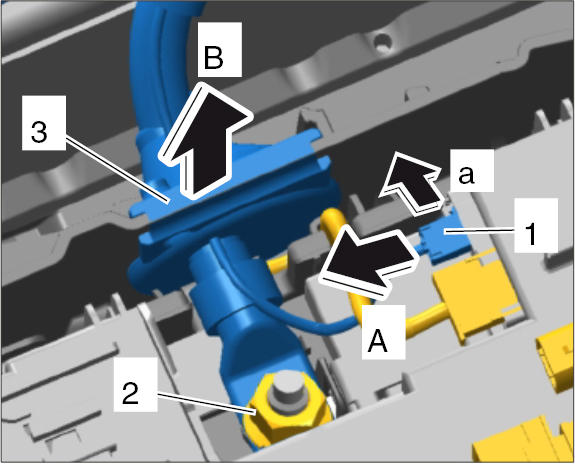

Release electric plug connection -1- (-a- ) and pull it off -A- .

Fig 4: Removing Line From Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw off fastening nut -2- for B+ line.
Remove rubber sleeve -3- (-B- ) and then remove the B+ line.
