Installing Wire Harness From Power Distributor (HSB) To B+ Connection Point In Engine Compartment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

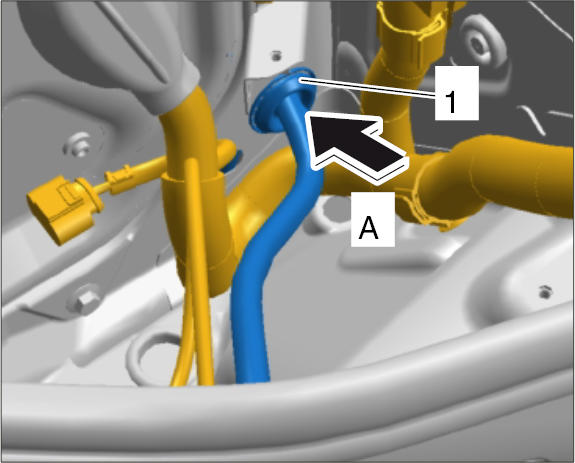

Pull the B+ line into the interior of the vehicle through the cut-out in the bulkhead and fit the rubber sleeve -1- (-A- ).

Fig 1: Pulling In B+ Line And Fitting Rubber Sleeve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

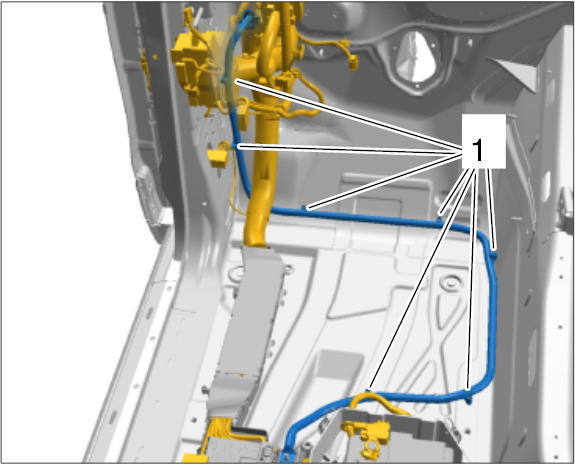

Secure fastening points -1- in the footwell.

Fig 2: Identifying Fastening Points In Footwell
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

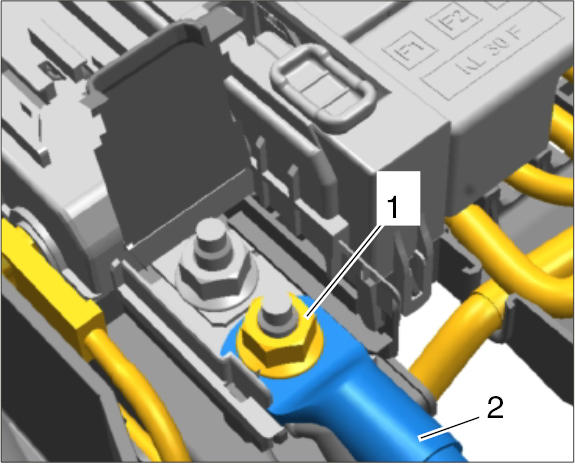

Fit B+ line -2- on the pins and tighten the fastening nut -1- to → Tightening Torque: 15 Nm (11 ft. lb.) .

Fig 3: Identifying B+ Line And Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the cover on the power distributor.
Secure fastening point -1- in the plenum panel.

Fig 4: Securing Fastening Points In Plenum Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

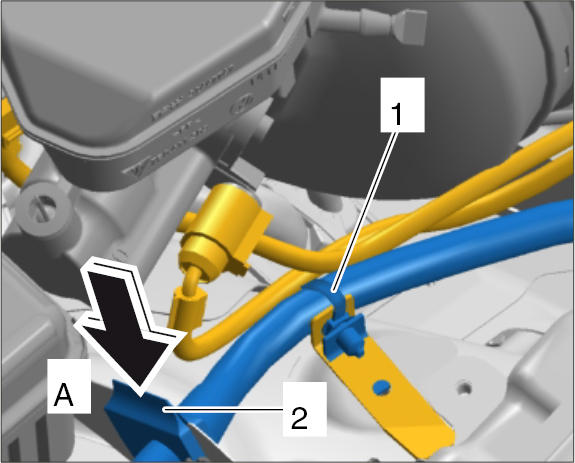

Slide rubber sleeve -2- into the bracket -A- .
Secure the relay box.

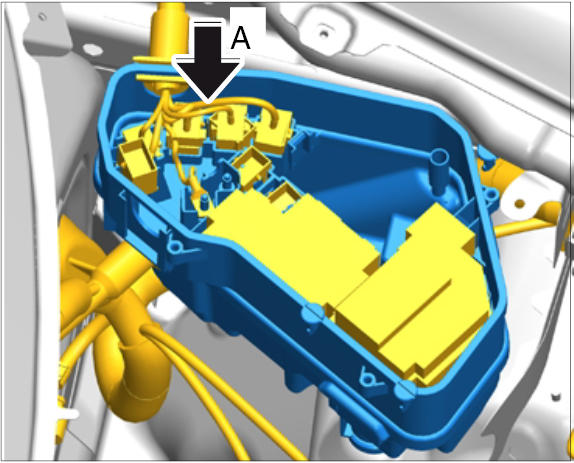

1. 7.1. Press the relay box into the catches at the underside -A- .

  Fig 5: Pressing Relay Box Into Catches
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

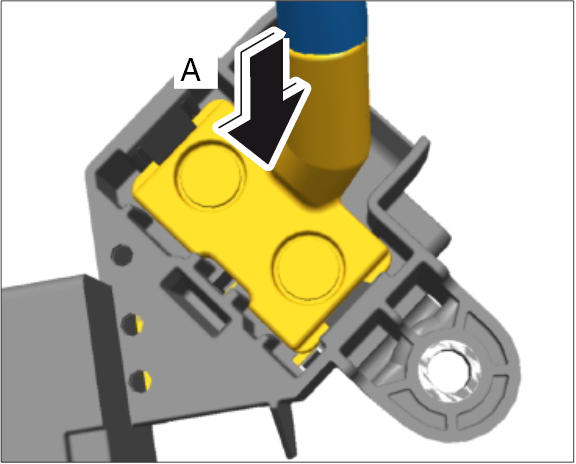

Fit the line at the underside of the positive terminal -A- .

Fig 6: Fitting B+ Line In Positive Terminal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screw -2- on positive terminal to → Tightening Torque: 8 Nm (6 ft. lb.) .

Fig 7: Installing Positive Terminal In Engine Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

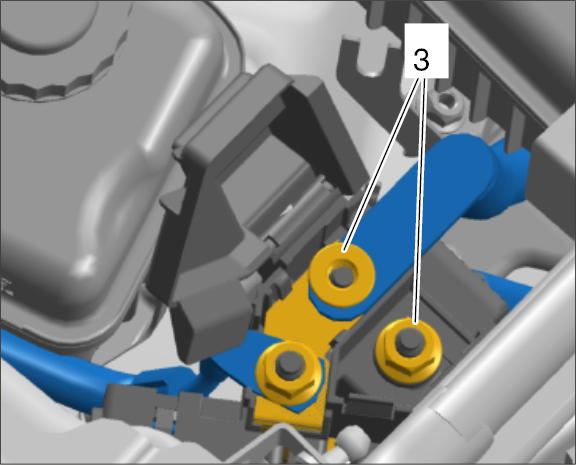

Tighten fastening nuts -3- to → Tightening Torque: 20 Nm (15 ft. lb.) .

Fig 8: Identifying Positive Terminal Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

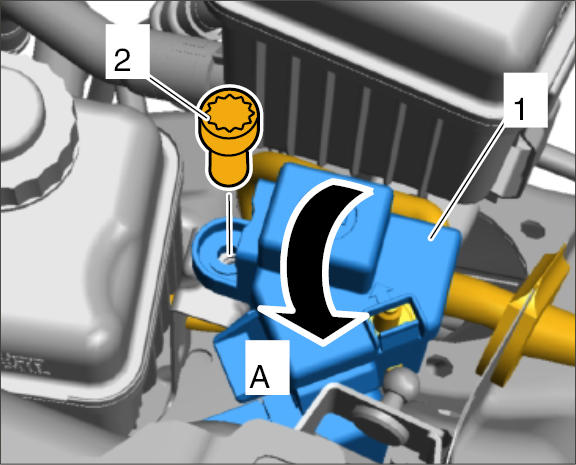

Close the cover -1- on the positive terminal -A-
Connect the battery. → CONNECTING THE BATTERY
