Installing Wire Harness From Battery To Power Distributor (HSB)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Incorrect handling of safety bolts

Danger of injury
Loss of torque

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

Insert B+ line and rubber sleeve -3- into the power distributor -B- .
Insert electric plug connection -1- (-A- ) until the connector engages securely.

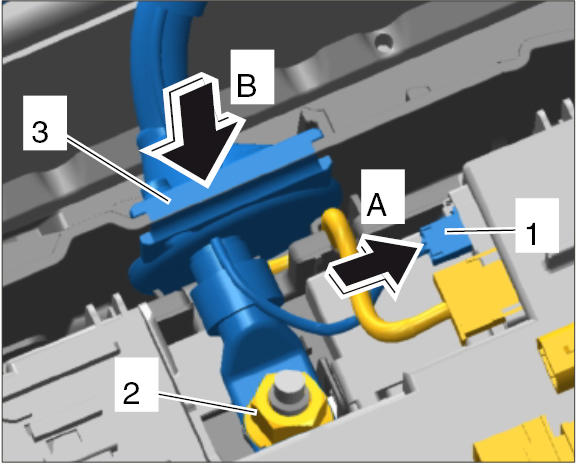

Fig 1: Fitting B+ Line On Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening nut -2- to → Tightening Torque: 15 Nm (11 ft. lb.) .
Close the cover on the power distributor.
Plug in electric plug connection on the battery sensor -A- until the connector engages securely.

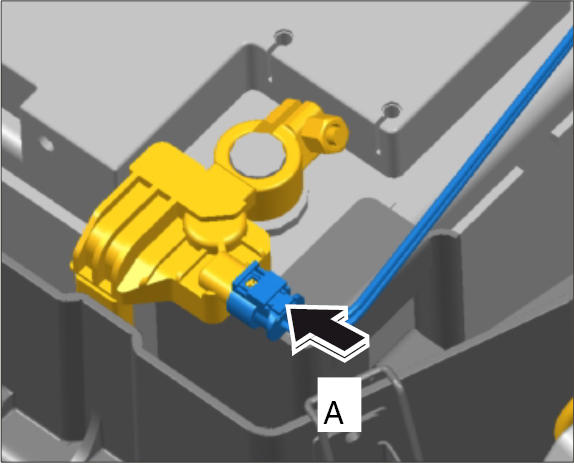

Fig 2: Plugging In Connector On Battery Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit B+ line on the battery's positive terminal and tighten fastening nut -2- on the positive terminal to → Tightening Torque: 6 Nm (4.5 ft. lb.) .

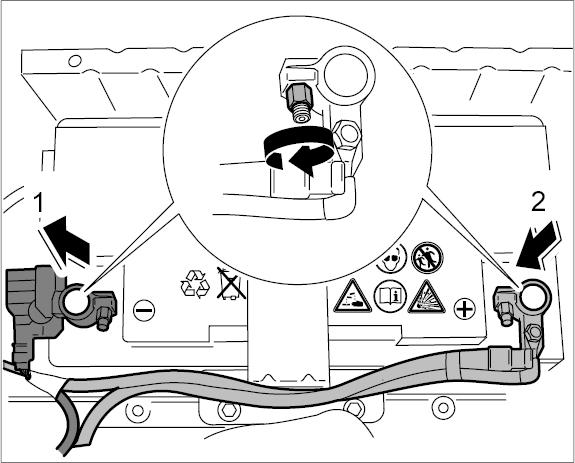

Fig 3: Attaching Terminal Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the battery case cover and secure with the tension hooks.
