Component Information

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

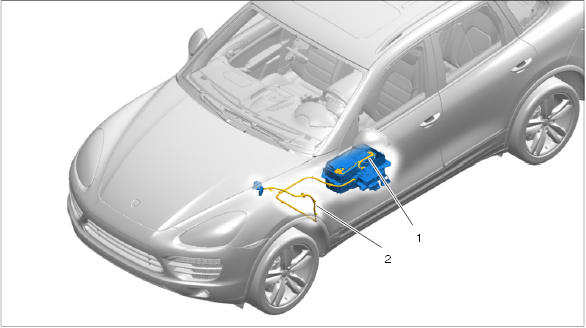

Fig 1: Identifying Installation Position Of Wire Harness From Battery To Power Distributor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness from battery to power distributor (HSB)
Wire harness from power distributor (HSB) to B+ connection point in engine compartment
