Removing Wire Harness For Rearview Mirror

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .
These must be carried out as a mirror image of the steps shown .

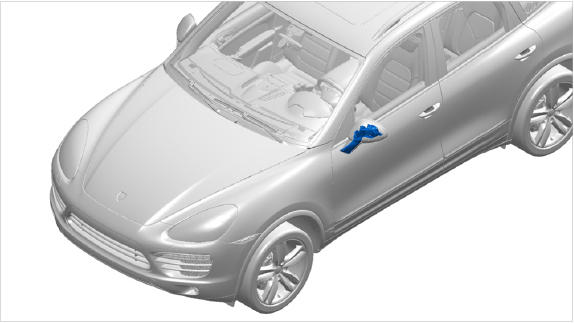

Fig 1: Installation Position Of Wire Harness For Rearview Mirror
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

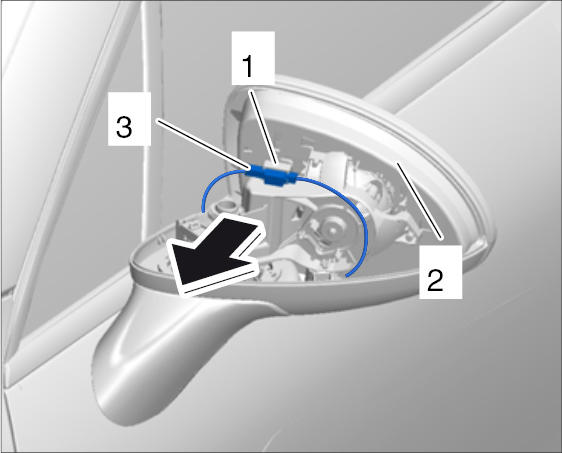

Push the plug connection -3- out of the holder -1- in the lower part of the housing -2- in the direction of the arrow.

Fig 2: Pushing Plug Connection Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

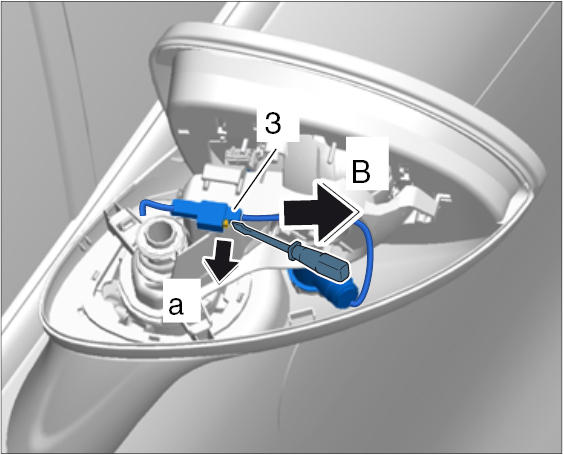

Release plug connection -3- (-a- ) and pull it off -B- .

Fig 3: Unplugging Plug Connection For Lamp In Rearview Mirror
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

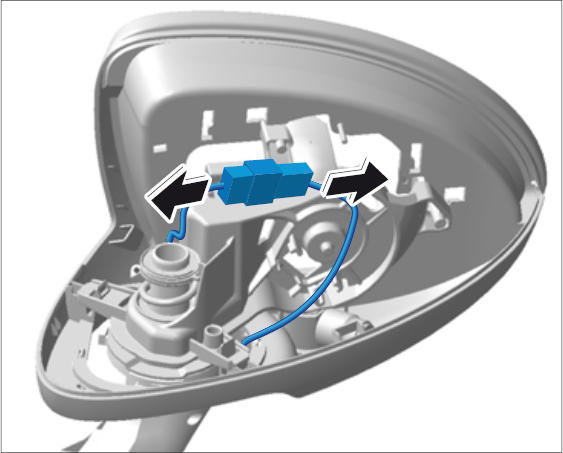

Unplug plug connection for folding function -arrow- .

Fig 4: Unplugging Plug Connection For Folding Function
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide wire harness -1- through in direction of arrow -arrow- .

Fig 5: Pulling Through Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

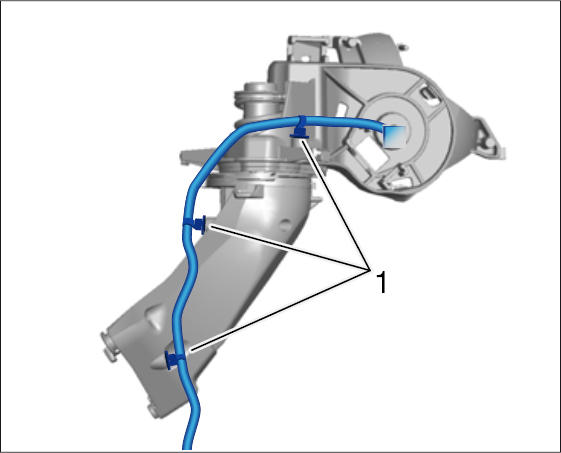

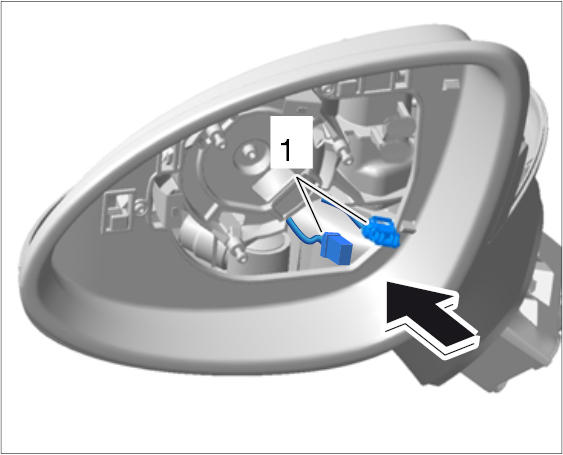

Unclip three clips -1- .

Fig 6: Identifying Wire Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
