Installing Wire Harness For Rearview Mirror

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

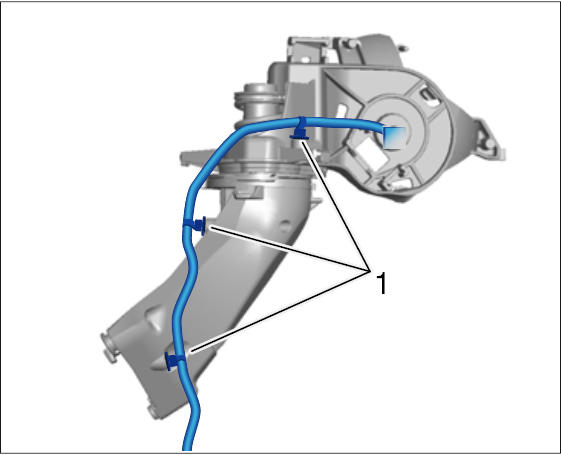

Insert three clips -1- .

Fig 1: Identifying Wire Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

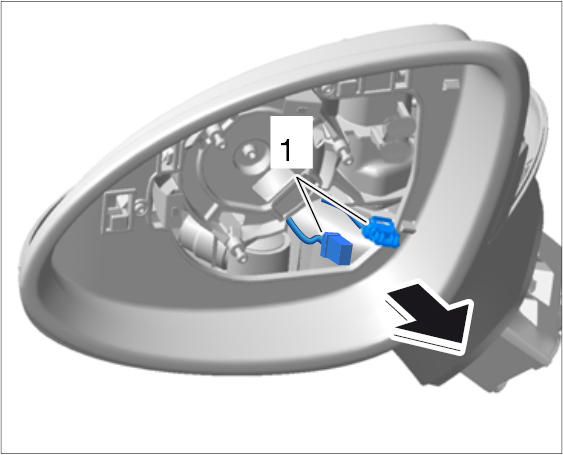

Guide wire harness through in direction of arrow.

Fig 2: Pulling Through Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

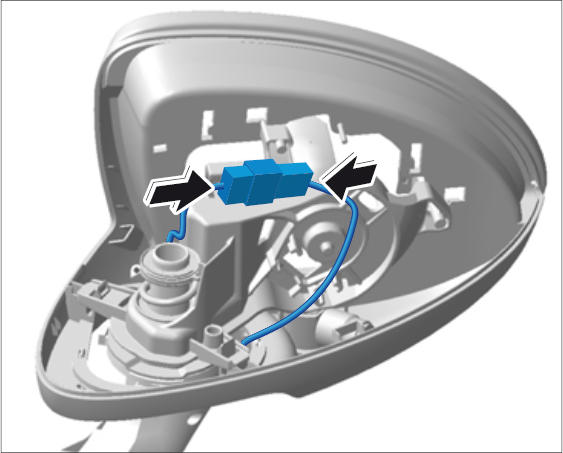

Plug in electrical plug connection for folding function.

Fig 3: Plugging In Plug Connection For Folding Function
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

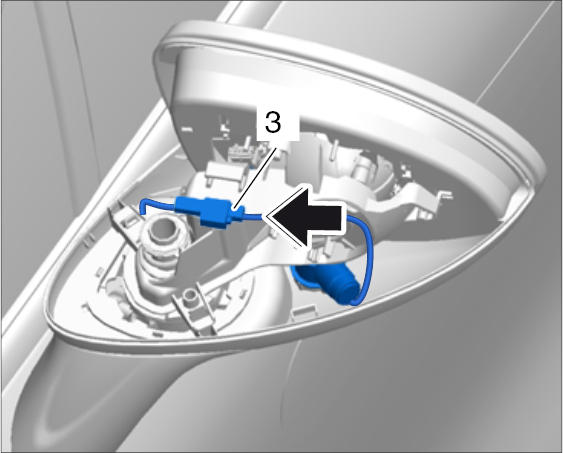

Plug in electrical plug connection -3- and lock it -arrow- .

Fig 4: Plugging In Plug Connection For Lamp In Rearview Mirror
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

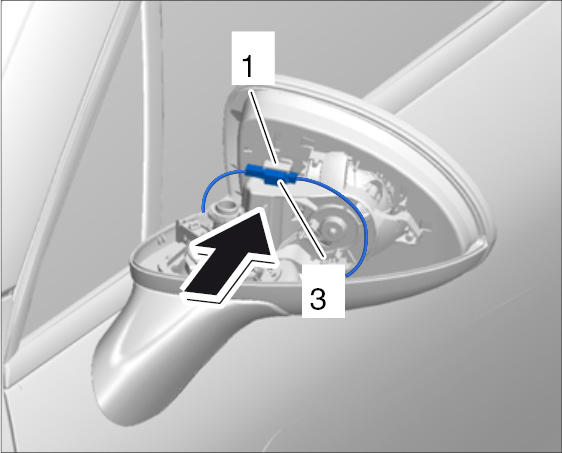

Push electrical plug connection -3- into holder -1- (-arrow- ).

Fig 5: Locating Plug Connection Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
