Removing Wire Harness For Removable Trailer Hitch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

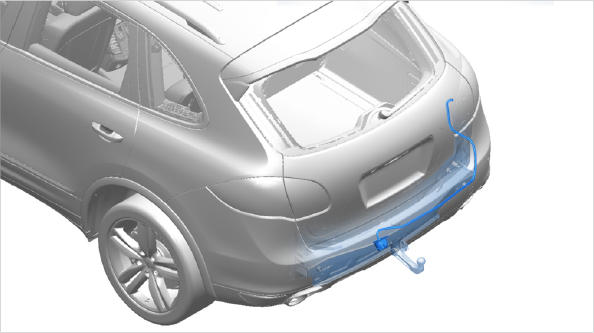

Fig 1: Identifying Installation Position Of Wire Harness For Trailer Hitch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cut tie-wrap -1- .

Fig 2: Identifying Tie-Wraps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

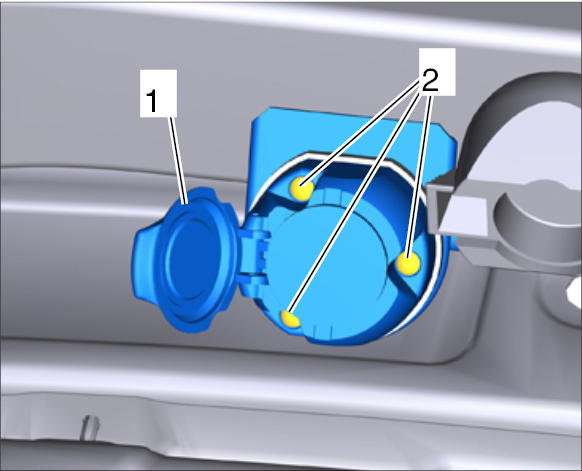

Open up cover of socket housing -1- and unscrew fastening screws -2- .

Fig 3: Identifying Plug Socket Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

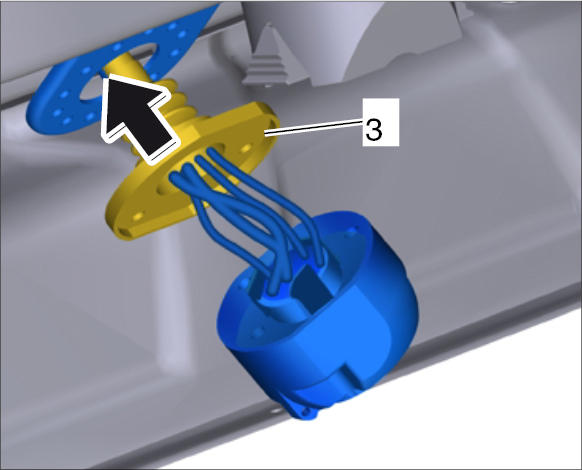

Push rubber sleeve -3- back from the socket housing in direction of arrow.

Fig 4: Locating Rubber Sleeve Behind Plug Socket Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

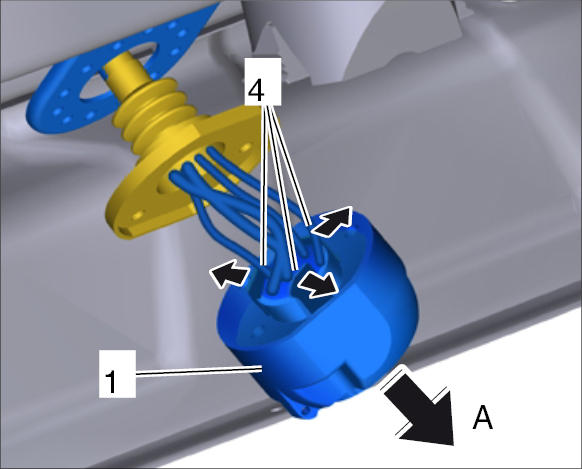

Disengage catches -4- on the socket housing -1- using a suitable tool -arrows- and pull off socket housing -1- (-arrow A- ).

Fig 5: Connector Locking Mechanism With Socket Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

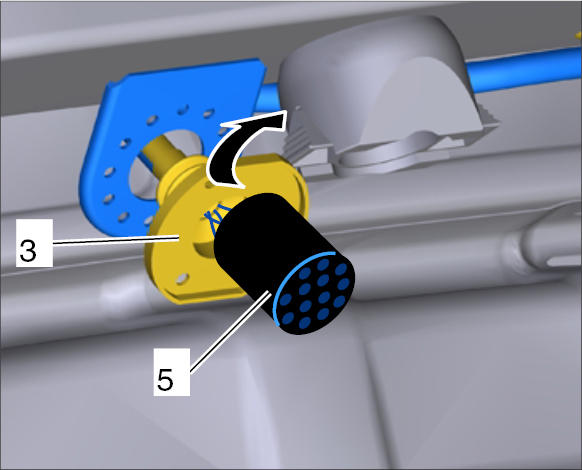

Guide connector -5- and rubber sleeve -3- through the cut-out on the trailer hitch.

Fig 6: Removing Connector Through Cut-Out In Trailer Hitch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

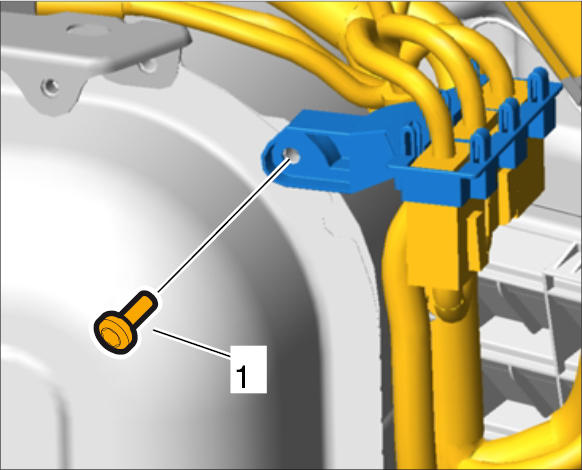

Unscrew fastening screw -1- from the connector holder.

Fig 7: Identifying Connector Holder And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

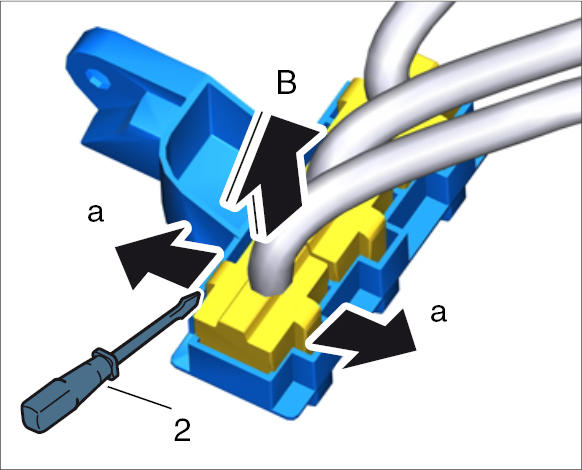

Release electric plug connection on the holder -2- at both sides -arrows a and disconnect it -arrow B- .

Fig 8: Removing Plug Connection At Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

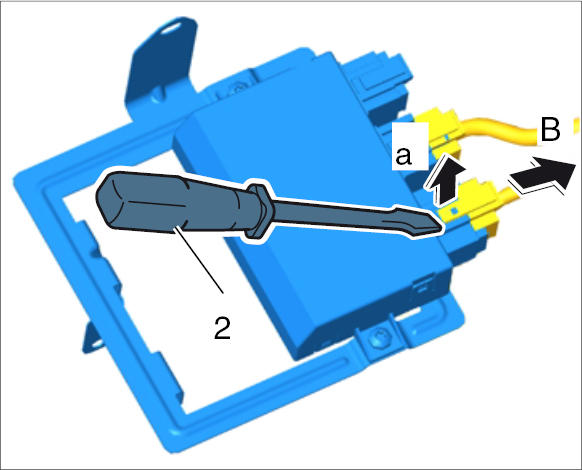

Release electric plug connection on the trailer hitch control unit -2- (-arrow a- ) and disconnect it -arrow B- .

Fig 9: Removing Plug Connection At Trailer Hitch Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

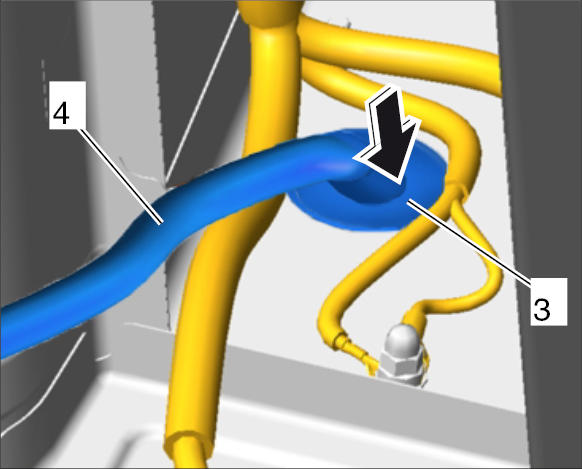

Press rubber sleeve -3- outwards -arrow- and pull wire harness -4- through the opening.

Fig 10: Locating Rubber Sleeve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

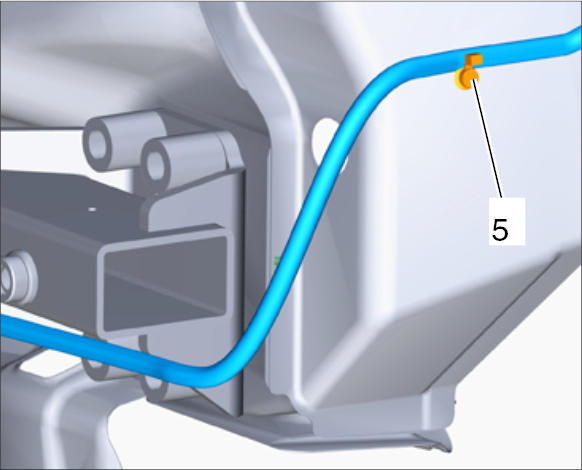

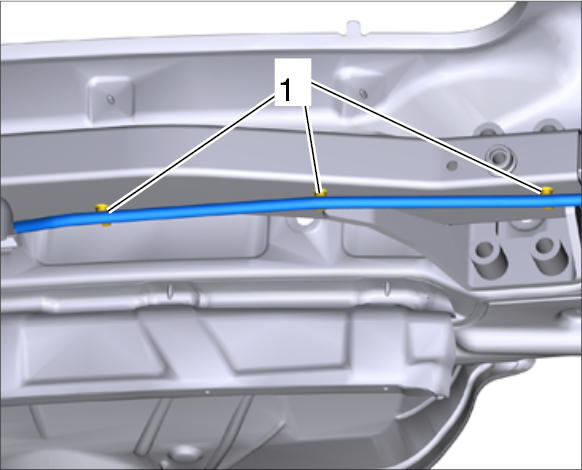

Cut tie-wraps -5- .

Fig 11: Identifying Tie-Wraps On Body Shell
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
