Installing Wire Harness For Removable Trailer Hitch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

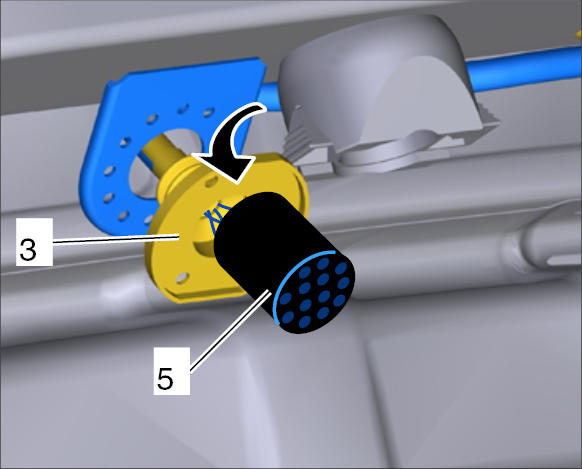

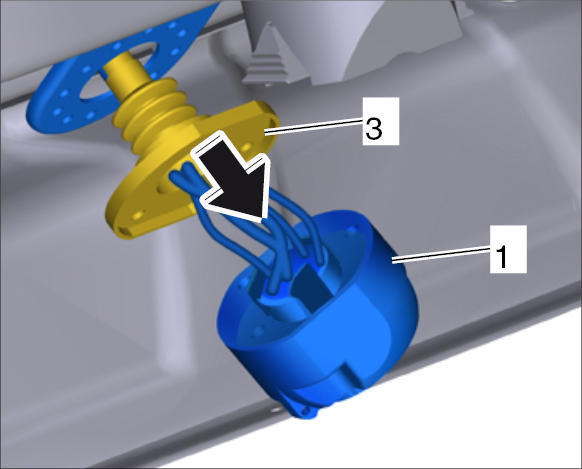

Guide connector -5- and rubber sleeve -3- through the cut-out on the trailer hitch -arrow- .

Fig 1: Locating Connector Through Cut-Out In Trailer Hitch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

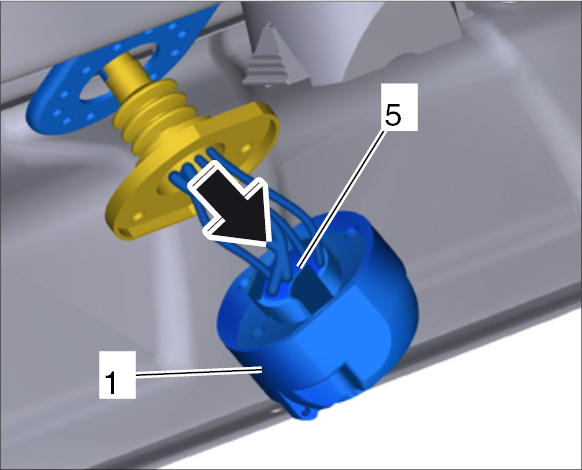

Guide connector -5- into the socket housing -1- (-arrow- ) until it engages securely.

Fig 2: Installing Connector In Socket Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push rubber sleeve -3- back onto the socket housing -1- .

Fig 3: Inserting Rubber Sleeve On Socket Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

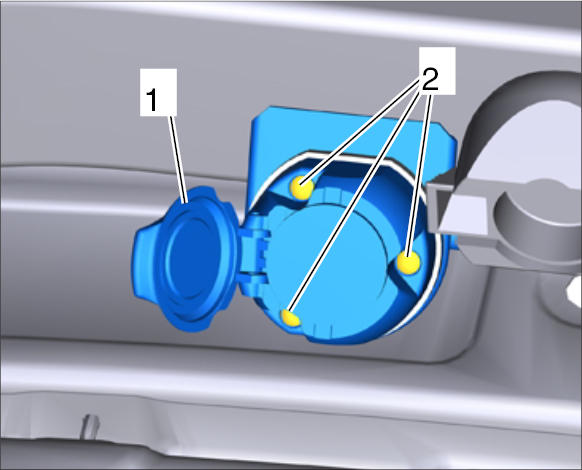

Open up cover of socket housing -1- and screw in fastening screws -2- .

Fig 4: Identifying Plug Socket Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

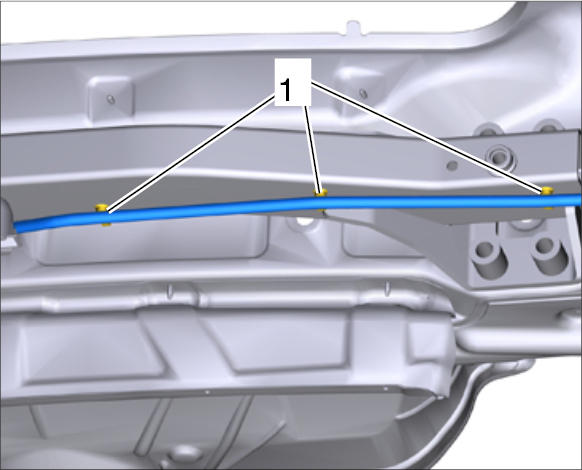

Attach tie-wrap -1- to the trailer hitch.

Fig 5: Identifying Tie-Wraps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

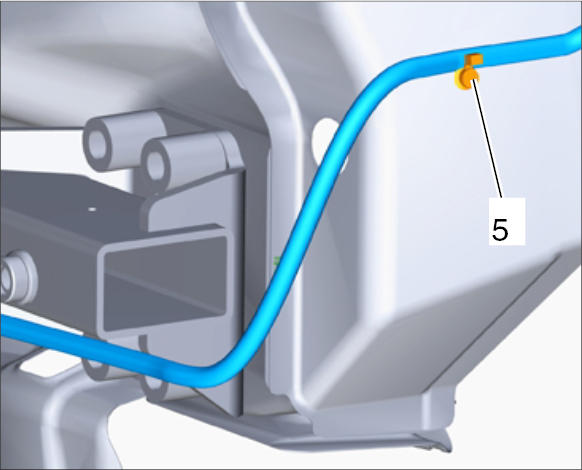

Attach tie-wraps -5- to body shell.

Fig 6: Identifying Tie-Wraps On Body Shell
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

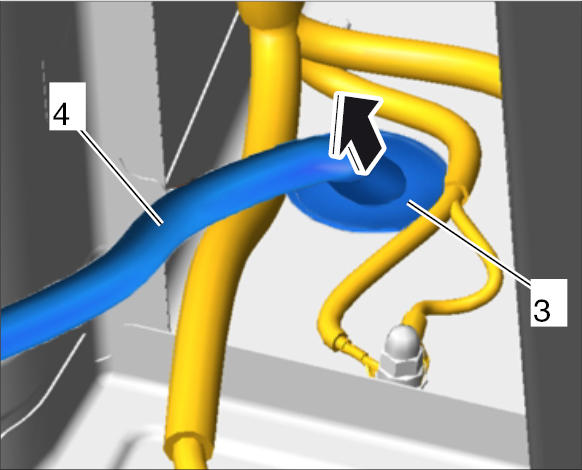

Guide wire harness -4- in -arrow- through the opening and press in rubber sleeve -3- .

Fig 7: Locating Rubber Sleeve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

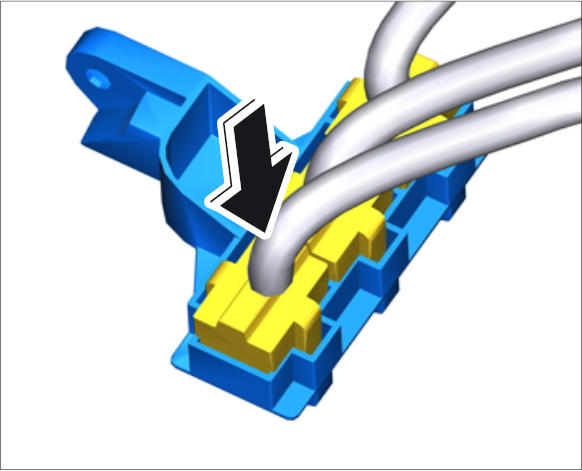

Plug in electric plug connection at the holder -arrow- until the plug connection engages securely.

Fig 8: Locating Plug Connection At Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

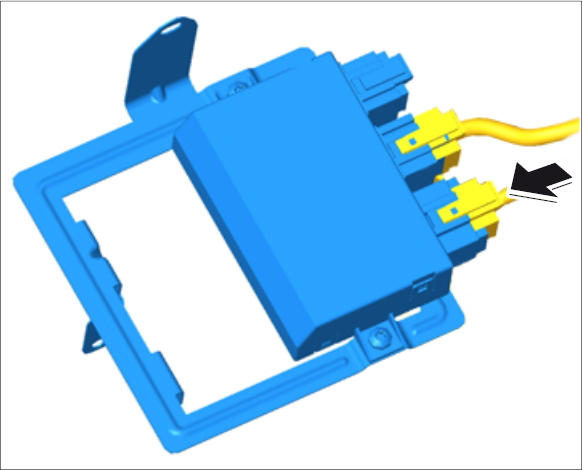

Plug electric plug connections into the trailer hitch control unit -arrow- until the plug connections engage securely.

Fig 9: Locating Plug Connection At Trailer Hitch Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

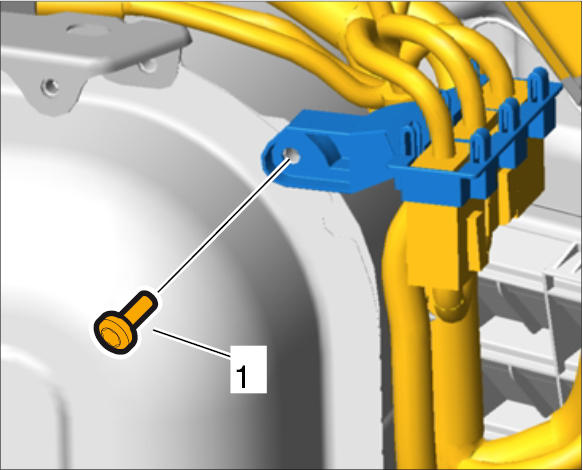

Tighten fastening screw -1- for the connector holder.

Fig 10: Identifying Connector Holder And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
