Removing Front Wire Harness

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

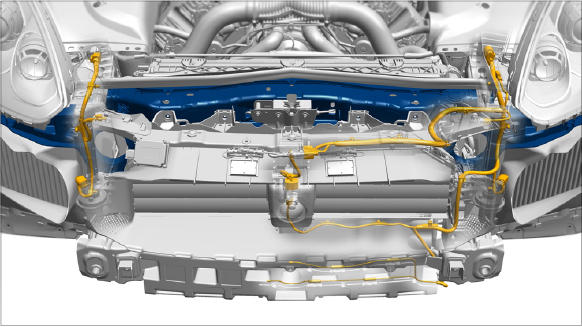

Fig 1: Identifying Installation Position Of Front Wire Harness

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

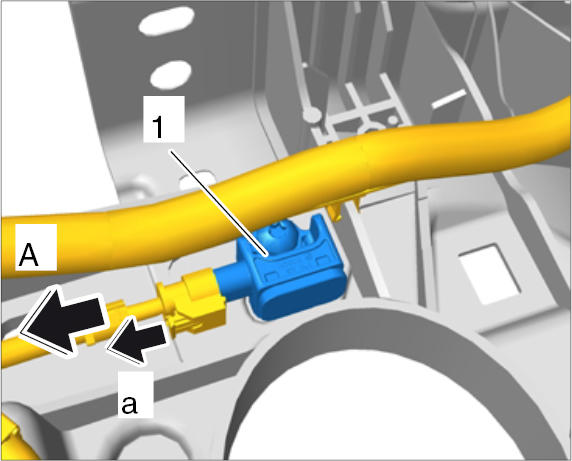

Release electric plug connections for airbag sensors -1- (-a- ) and disconnect them -A- .

Fig 2: Removing Plug Connection For Airbag Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
