Installing Front Wire Harness

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Clip in clips -2- at the lock support -B- .

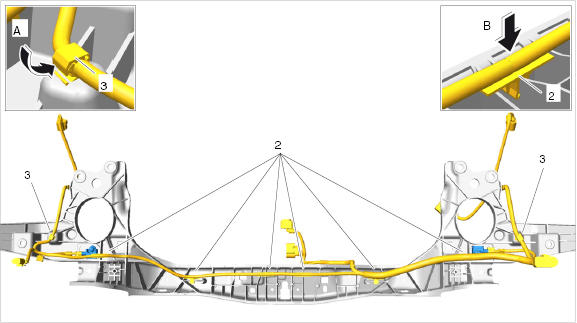

Fig 1: Locating Wire Routing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in clips -3- at the lock support -A- .
Insert electrical plug connection for airbag sensor -1- (-A- ) and lock it -a- .

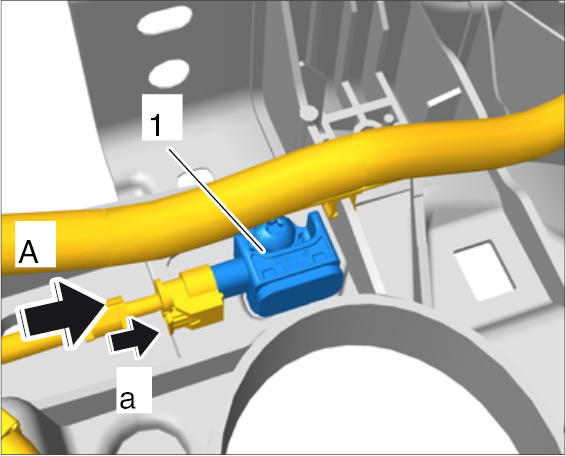

Fig 2: Installing ABS Sensor Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
