Removing Front Wire Harness

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

USA vehicles

Release and disconnect electric plug connections on the side marker lights.
Vehicles with Real Top View
Release and disconnect electric plug connection on the front camera. → 916919 REMOVING AND INSTALLING FRONT CAMERA
All vehicles

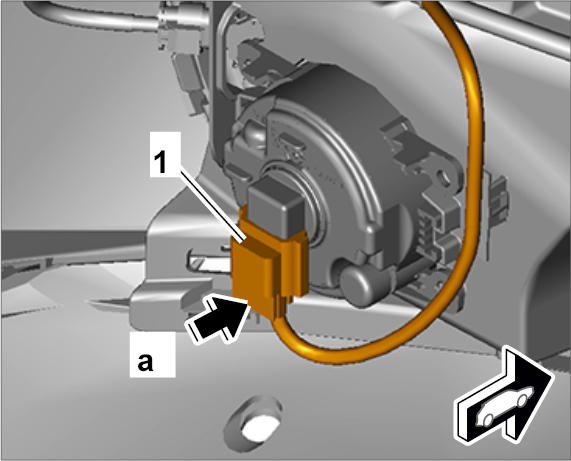

Release electric plug connections -1- on the fog lights -a- and disconnect them by pulling them downwards.

Fig 1: Disconnecting Electric Plug Connection On Fog Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

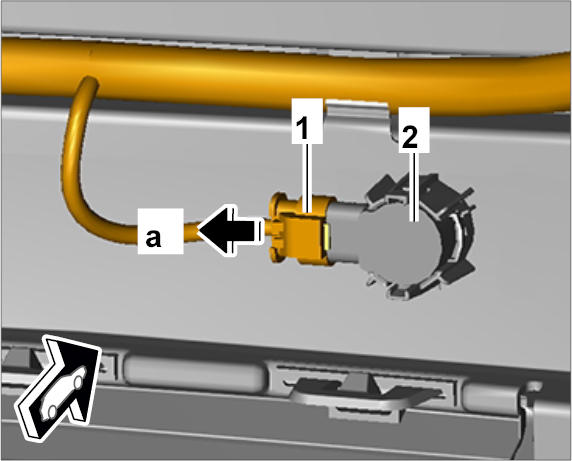

Release electric plug connections -1- on the ParkAssist sensors -2- (-a- ) and press and disconnect them.

Fig 2: Disconnecting Electric Plug Connection For ParkAssist Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

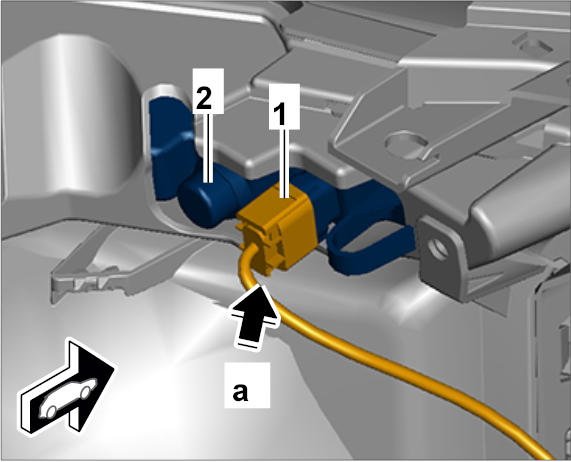

Release electric plug connections -1- on the auxiliary headlights -2- (-a- ) and disconnect them.

Fig 3: Disconnecting Electric Plug Connection On Auxiliary Headlight
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
- Never touch the electric pins and plug contacts .

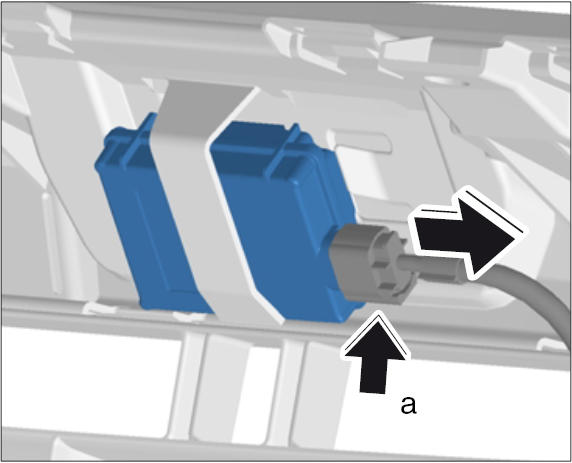

Release and disconnect electric plug connection on the garage door opener control unit -a- .

Fig 4: Disconnecting Electric Plug Connection On Control Unit For Garage Door Opener
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

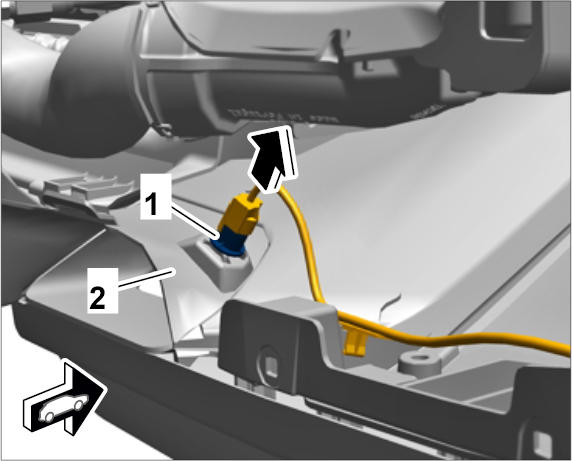

Release and disconnect electric plug connection on outside-temperature sensor -1- .

Fig 5: Disconnecting Electric Plug Connection On Outside-Temperature Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

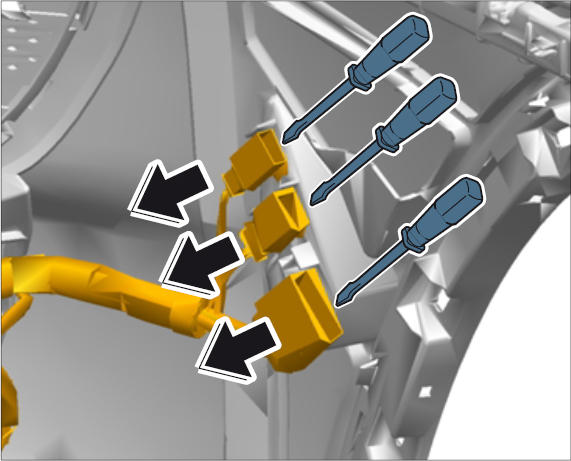

Unclip electric plug connections for the front right wire harness at the front apron.

Fig 6: Disconnecting Electric Plug Connections At Right On Front Apron
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

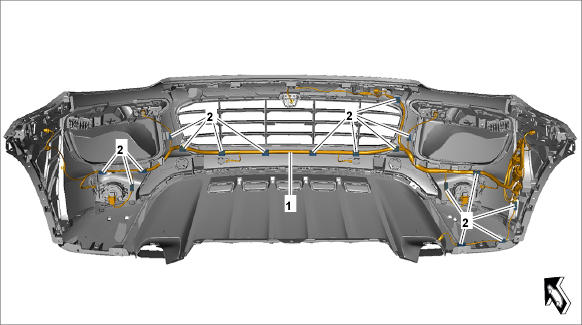

Disconnect front wire harness -1- from the front apron at the fastening points -2- .
USA vehicles
Loosen sub-parts for side marker lights from the front apron at the fastening points.
Vehicles with Real Top View
Loosen sub-part for front camera from the front apron at the fastening points.

Fig 7: Identifying Routing And Fastening Points For Front Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
