Overview Of Main Wire Harnesses

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

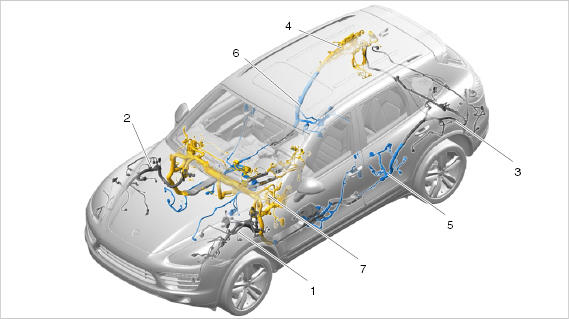

Fig 1: Overview Of Main Wire Harnesses
G09942102Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Wire Harness In Engine Compartment At The Left
  2. Wire Harness In Engine Compartment At The Right
  3. Wire Harness In Luggage Compartment At The Left
  4. Wire Harness In Luggage Compartment At The Right
  5. Wire Harness In Passenger Compartment At The Left
  6. Wire Harness In Passenger Compartment At The Right
  7. Wire Harness In Center Console
