Loosening Main Wire Harness In Passenger Compartment At The Right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
Never touch the electric pins and plug contacts .

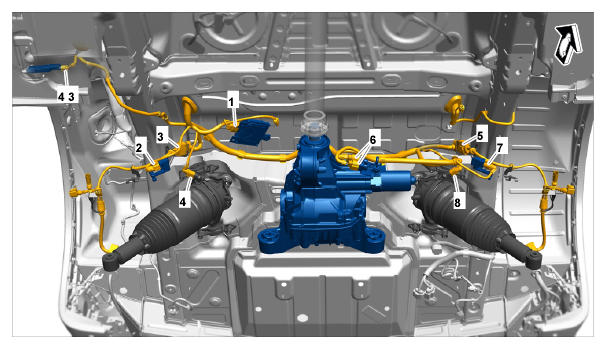

Fig 1: Identifying Plug Connections On Rear Underbody
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Electric Plug Connection For Fuel Pump Control Unit
2. Electric Plug Connection For Level Sensor At The Rear Right
3. Electric Plug Connection For Connection Point For ABS Wire Harness At The Right
4. Electric Plug Connection For Shock Absorber Control At The Rear Right
5. Electric Plug Connection For Connection Point For ABS Wire Harness At The Left
6. Electric Plug Connection For Servo Motor For Rear-Differential Lock (2 Electric Plug Connections)
7. Electric Plug Connection For Level Sensor At The Rear Left
8. Electric Plug Connection For Shock Absorber Control At The Rear Left
1. 43 - Electric Plug Connection For KESSY Antenna In Rear Right Wheel Housing

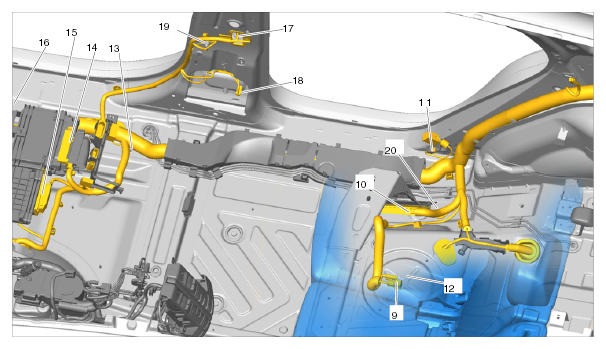

  Fig 2: Identifying Plug Connections For Main Wire Harness In Passenger Compartment At Right
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 9 - Electric Plug Connection For Seat-Belt Buckle On Rear Seat
3. 10 - Electric Plug Connection For PASM Control Unit
4. 11 - Electric Plug Connection For Lateral-Acceleration Sensor
5. 12 - Electric Plug Connections For Right Fuel Pump (2 Electric Plug Connections)
6. 13 - Ground Point Under Front Seat
7. 14 - Electric Plug Connection For Control Unit For Rear-Differential Lock
8. 15 - Electric Plug Connection For Transmission Control Unit
9. 16 - Electric Plug Connection For Control Unit For Transmission-Oil Pump
10. 17 - Electric Plug Connection For Connection Point For Rear Door
11. 18 - Electric Plug Connection For Seat-Belt Pretensioner At B-Pillar
12. 19 - Ground Point On B-Pillar
13. 20 - Ground Point Under Rear Seat

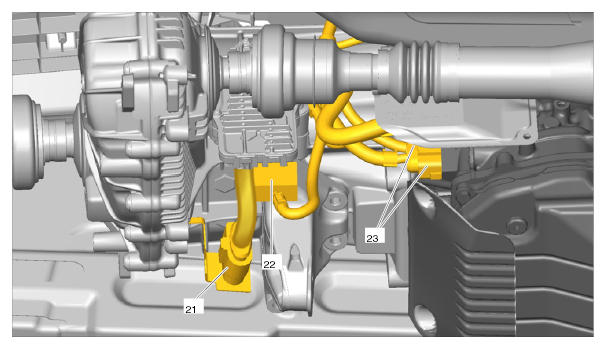

  Fig 3: Identifying Plug Connections On Underbody In Transmission Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
14. 21 - Electric Plug Connection For Connection Point For Wire Harness For Transmission
15. 22 - Electric Plug Connection For Servo Motor On Transfer Gear
16. 23 - Electric Plug Connections For Transmission (2 Electric Plug Connections)

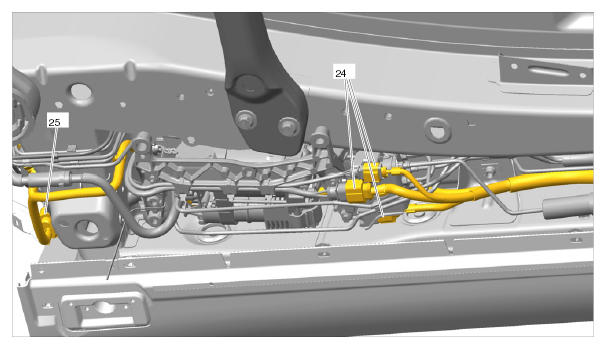

  Fig 4: Identifying Plug Connections On Front Door Sill
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
17. 24 - Electric Plug Connections For Levelling System Compressor (3 Electric Plug Connections)
18. 25 - Electric Plug Connection For PDCC Valve Block

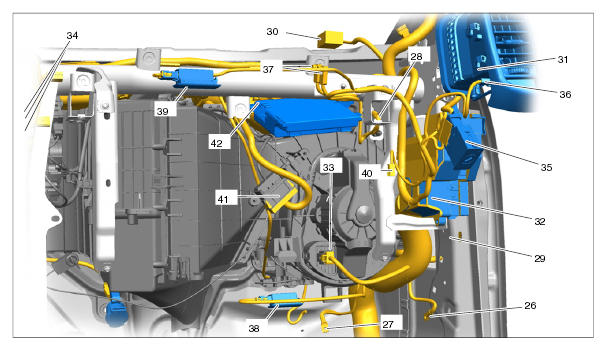

  Fig 5: Identifying Plug Connections In Dashboard Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
19. 26 - Ground Point On A-Pillar
20. 27 - Ground Point In Footwell
21. 28 - Ground Point On Dashboard Bracket
22. 29 - Electric Plug Connection For Connection Point For Front Door
23. 30 - Electric Plug Connection For Loudspeaker In Dashboard At The Side
24. 31 - Electric Plug Connection For Temperature Sensor In Side Air Vents
25. 32 - Fuse Carrier
26. 33 - Electric Plug Connection For Heating/Fresh-Air Blower Motor
27. 34 - Electric Plug Connections From Antennas To PCM (3 Electric Plug Connections)
28. 35 - Electric Plug Connection For Switch For Airbag
29. 36 - Electric Plug Connection For Potentiometer For Side Air Outlet Vent
30. 37 - Electric Plug Connections For Passenger's Airbag (2 Electric Plug Connections)
31. 38 - Electric Plug Connection For Footwell Lighting
32. 39 - Electric Plug Connection For Glove Compartment Light
33. 40 - Electric Plug Connection For Glove Compartment Switch
34. 41 - Electric Plug Connection For Heating/Fresh-Air Unit
35. 42 - Electric Plug Connection For Voltage Transformer For Start/Stop

Right wire harness on rear underbody:

Release and disconnect electric plug connection for the fuel pump control unit -1- . → 207019 REMOVING AND INSTALLING CONTROL UNIT FOR FUEL PUMP
Release and disconnect electric plug connection for rear right level sensor -2- . → 431955 REPLACING REAR LEVEL SENSOR
Release and disconnect electric plug connection for KESSY antenna in the rear right wheel housing -43- . → 966719 REMOVING AND INSTALLING KESSY ANTENNA
Release and disconnect electric plug connection for connection point for ABS wire harness at the right -3- .
Release and disconnect electric plug connection for rear right spring strut (air spring) -4- . → 432519 REMOVING AND INSTALLING REAR SPRING STRUT (AIR SPRINGS)
Release and disconnect electric plug connection for connection point for ABS wire harness at the left -5- .
Release and disconnect electric plug connections for servo motor for rear-differential lock -6- . → 397719 REMOVING AND INSTALLING SERVO MOTOR FOR REAR-DIFFERENTIAL LOCK
Release and disconnect electric plug connection for rear left level sensor -7- . → 431955 REPLACING REAR LEVEL SENSOR
Release and disconnect electric plug connection for rear left spring strut (air spring) -8- . → 432519 REMOVING AND INSTALLING REAR SPRING STRUT (AIR SPRINGS)
Loosen fastening points -1- on the rear underbody.

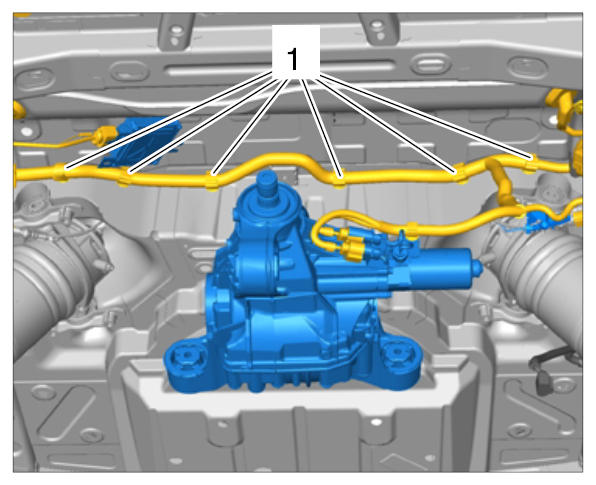

Fig 6: Identifying Fastening Points On Rear Underbody
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness at the right in passenger compartment:
Release and disconnect electric plug connection for seat-belt buckle on rear seat -9- .
Release and disconnect electric plug connection for PASM control unit -10- .
Release and disconnect electric plug connection for lateral-acceleration sensor -11- at the C-pillar.
Release and disconnect electric plug connections for the fuel pump at the right -12- . → 206619 REMOVING AND INSTALLING FUEL PUMP
Screw off fastening nut on ground point under the front seat -13- .
Release and disconnect electric plug connection for control unit for rear-differential lock -14- . → 397519 REMOVING AND INSTALLING CONTROL UNIT FOR REAR-DIFFERENTIAL LOCK
Release and disconnect electric plug connection for transmission control unit -15- . → 373019 REMOVING AND INSTALLING TRANSMISSION CONTROL UNIT
Release and disconnect electric plug connection for control unit for transmission-oil pump -16- . → 385919 REMOVING AND INSTALLING CONTROL UNIT FOR TRANSMISSION-OIL PUMP
Release and disconnect electric plug connection for connection point for rear door -17- . → 585119 REMOVING AND INSTALLING REAR DOOR
Unclip bracket for plug socket for connection point for rear door and pull wiring inwards.
Release and disconnect electric plug connection for seat-belt pretensioner at the B-pillar -18- . → 691119 REMOVING AND INSTALLING FRONT THREE-POINT BELT
Unscrew fastening nut from ground point at the B-pillar -19- .
Unscrew fastening nut on ground point under the rear seat -20- .
Loosen fastening points -2- in the passenger compartment.

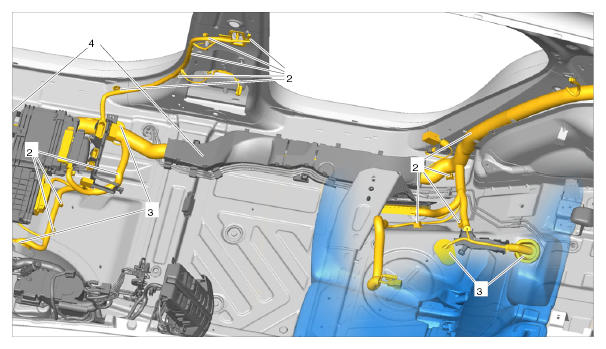

Fig 7: Identifying Fastening Points In Passenger Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 24.1. Pull rubber sleeves -3- and lines inwards.
2. 24.2. Unclip cable ducts -4- from the brackets.
Wire harness on underbody in transmission area:
Release and disconnect electric plug connection for connection point for transmission wire harness -21- . → 373519 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION
Release and disconnect electric plug connection for servo motor on the transfer gear -22- . → 397819 REMOVING AND INSTALLING SERVO MOTOR ON TRANSFER GEAR
Release and disconnect electric plug connections for the transmission -23- . → 373519 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION

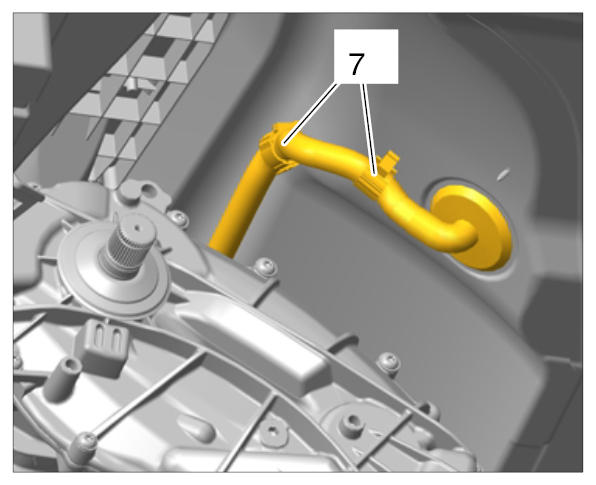

Loosen fastening points -7- on the underbody in the transmission area.

Fig 8: Identifying Fastening Points On Front Underbody
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness on front door sill:
Release and disconnect electric plug connections for the levelling system compressor -24- . → 431519 REMOVING AND INSTALLING COMPRESSOR FOR LEVELLING SYSTEM
Release and disconnect electric plug connection for the PDCC valve block -25- . → 430419 REMOVING AND INSTALLING VALVE BLOCK

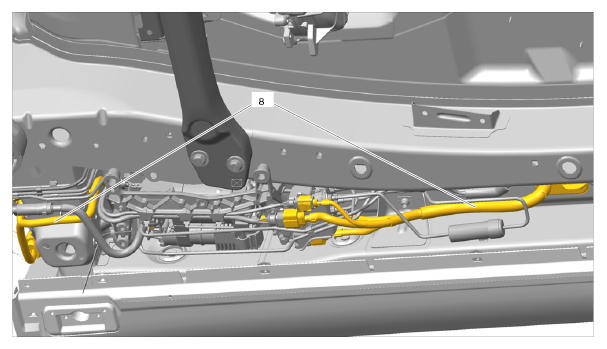

Loosen fastening points -8- at the door sill.

Fig 9: Identifying Fastening Points At Door Sill
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness in dashboard area:
Unscrew fastening nuts on the ground points at the A-pillar -26- and in the footwell -27- .
Release and disconnect electric plug connection for connection point for front door -29- .
Unclip bracket for plug socket for door connection point for front door and pull wiring inwards.

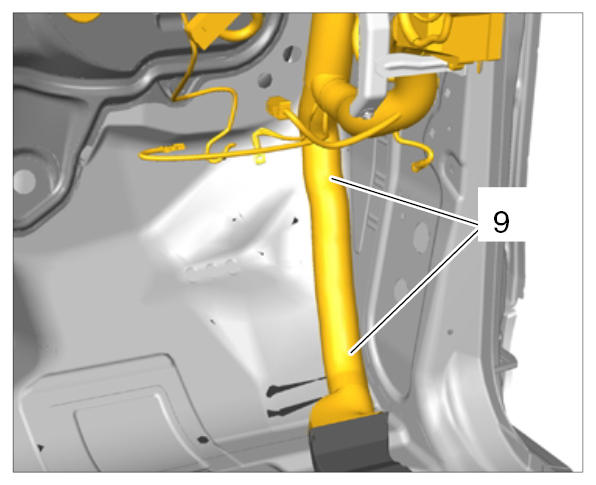

Loosen fastening points -9- in the dashboard area.

Fig 10: Identifying Fastening Points In Dashboard Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
