Securing Main Wire Harness In Passenger Compartment At The Left

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

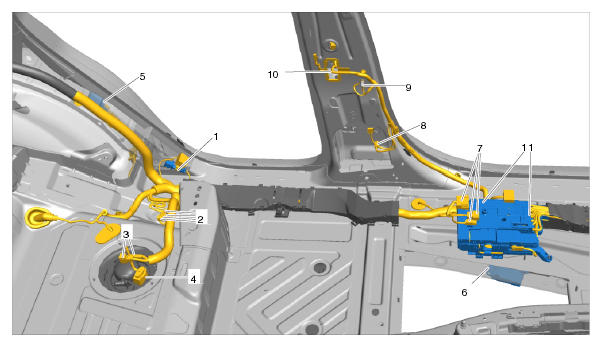

Fig 1: Identifying Connectors For Main Wire Harness In Passenger Compartment At Left
G09942073Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Electric Plug Connection For Lateral-Acceleration Sensor
  2. Electric Plug Connections For Vehicle Tracking System (4 Electric Plug Connections)
  3. Electric Plug Connections For Rear Seat (2 Electric Plug Connections)
  4. Electric Plug Connection For Fuel Pump
  5. Electric Plug Connection For KESSY Antenna In Rear Left Wheel Housing
  1. 7  - Electric plug connections for front seat (3 electric plug connections)
  2. 8  - Electric plug connection for seat-belt pretensioner at the front left
  3. 9  - Ground point on B-pillar
  4. 10  - Electric plug connection for door connection point at the rear left
  5. 11  - Electric plug connection for power distributor

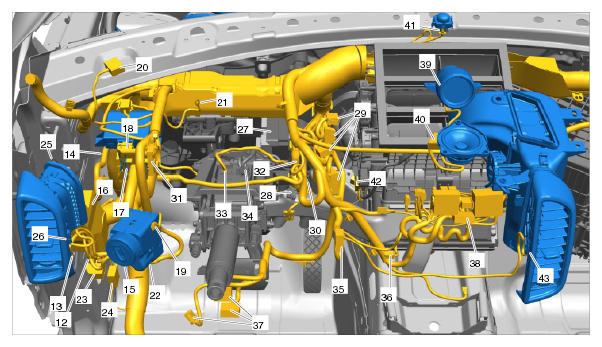

    Fig 2: Identifying Connectors For Main Wire Harness In Passenger Compartment - Dashboard Area
    G09942074Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. 12  - Ground point on A-pillar
  7. 13  - Electric plug connection for door connection point at the front left
  8. 14  - Electric plug connection for control unit for ParkAssist system
  9. 15  - Electric plug connection for diagnostic interface
  10. 16  - Electric plug connection for fuse carrier
  11. 17  - Electric plug connection for relay module
  12. 18  - Electric plug connection for gateway control unit
  13. 19  - Electric plug connection for loudspeaker in dashboard at the left
  14. 20  - Electric plug connection for air vent at the sides
  15. 21  - Electric plug connection for dashboard bracket
  16. 22  - Electric plug connection for ignition starter switch
  17. 23  - Electric plug connection for parking brake switch
  18. 24  - Electric plug connection for rotary light switch
  19. 25  - Electric plug connection for temperature sensor in side air vents
  20. 26  - Electric plug connection for potentiometer for side air vent
  21. 27  - Electric plug connection for relay module
  22. 28  - Electric plug connection for temperature sensor in footwell outlet vents on the left
  23. 29  - Electric plug connection for front-end electronics control unit
  24. 30  - Electric plug connection for accelerator pedal
  25. 31  - Electric plug connection for instrument cluster
  26. 32  - Electric plug connection from antenna to instrument cluster
  27. 33  - Electric plug connection for steering column
  28. 34  - Electric plug connection for steering column
  29. 35  - Electric plug connection for interior temperature sensor
  30. 36  - Electric plug connection for potentiometer for center air vent at the left
  31. 37  - Electric plug connections for steering column switch (3 electric plug connections)
  32. 38  - Electric plug connection for PCM/car radio (4 electric plug connections)
  33. 39  - Electric plug connection for compass
  34. 40  - Electric plug connection for loudspeaker in dashboard at the center
  35. 41  - Electric plug connection for sun sensor
  36. 42  - Electric plug connections for air conditioning servo motor in dashboard (2 electric plug connections)
  37. 43  - Electric plug connection for potentiometer for center air vent at the right
  1. First lay the main wire harness loosely, ensuring that it is positioned correctly.

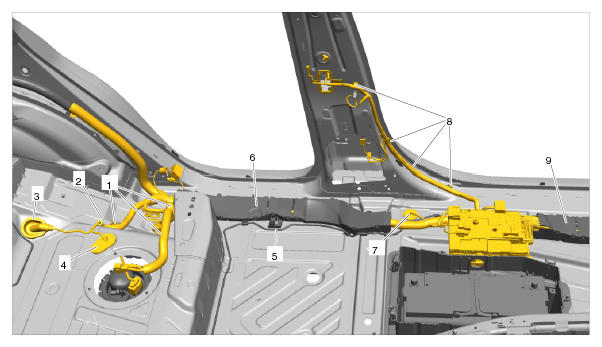

    Fig 3: Identifying Fastening Points In Passenger Compartment At Left
    G09942075Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 10  - Bracket behind dashboard at the left
    2. 11  - Bracket behind dashboard at the center

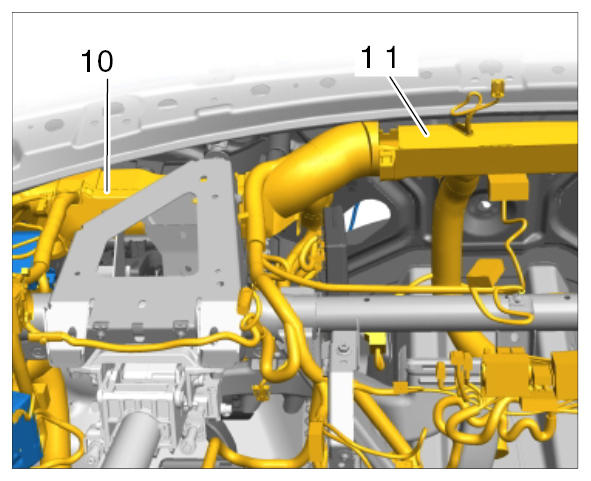

      Fig 4: Identifying Fastening Points In Dashboard Area
      G09942076Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit fastening points in the passenger compartment at the left.
    1. 2.1. Secure fixing clips -1-  under the rear seat.
    2. 2.2. Secure wire harness in the cable duct -2-  under the rear seat.
    3. 2.3. Remove rubber sleeve -3-  for line to connector for KESSY antenna in the rear left wheel housing.
    4. 2.4. Fit rubber sleeve -4-  for line for the fuel pump.
    5. 2.5. Secure pressure line for the levelling system -5-  in the bracket on the cable duct.
    6. 2.6. Secure cable duct -6-  to the underbody.
    7. 2.7. Secure fixing clips -8-  for line for the rear left door connection point.
    8. 2.8. Secure cable duct -9-  to the underbody.
  3. Loosen fastening points in the dashboard area.
    1. 3.1. Secure wire harness in bracket behind the dashboard at the left -10-  .
    2. 3.2. Secure wire harness in bracket behind the dashboard at the center -11-  .
  4. Tighten fastening nut for ground point at the B-pillar -9-  . → Tightening Torque: 9 Nm (6.5 ft. lb.)
  5. Tighten fastening nut for ground point at the A-pillar -12-  . → Tightening Torque: 9 Nm (6.5 ft. lb.)
  6. Plug in electric plug connections -1 - 10-  in the passenger compartment until they engage securely.
  7. Plug in electric plug connections -13 - 43-  in the dashboard area until they engage securely.
  8. Fit and secure the rear floor covering.
