Loosening Main Wire Harness In Passenger Compartment At The Left

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
Never touch the electric pins and plug contacts .

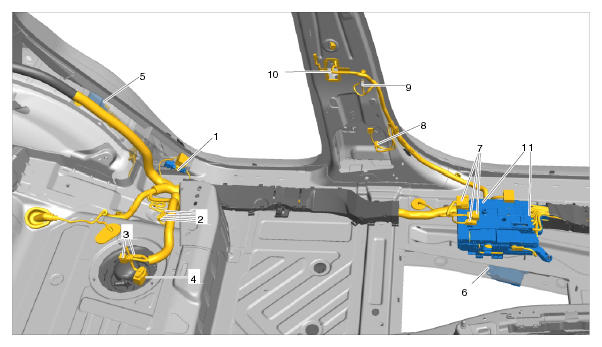

Fig 1: Identifying Connector For Main Wire Harness In Passenger Compartment At Left
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Electric Plug Connection For Lateral-Acceleration Sensor
2. Electric Plug Connections For Vehicle Tracking System (Four Electric Plug Connections)
3. Electric Plug Connections For Rear Seat (Two Electric Plug Connections)
4. Electric Plug Connection For Fuel Pump
5. Electric Plug Connection For KESSY Antenna In Rear Left Wheel Housing
1. 7 - Electric plug connections for front seat (three electric plug connections)
2. 8 - Electric plug connection for seat-belt pretensioner at the front left
3. 9 - Ground point on B-pillar
4. 10 - Electric plug connection for door connection point at the rear left
5. 11 - Electric plug connection for power distributor

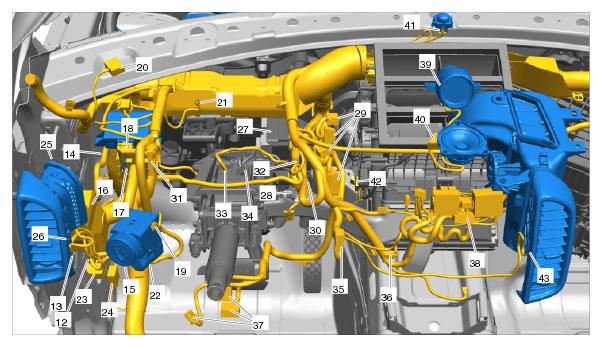

  Fig 2: Identifying Connector For Main Wire Harness In Passenger Compartment - Dashboard Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. 12 - Ground point on A-pillar
7. 13 - Electric plug connection for door connection point at the front left
8. 14 - Electric plug connection for control unit for ParkAssist system
9. 15 - Electric plug connection for diagnostic interface
10. 16 - Electric plug connection for fuse carrier
11. 17 - Electric plug connection for relay module
12. 18 - Electric plug connection for gateway control unit
13. 19 - Electric plug connection for loudspeaker in dashboard at the left
14. 20 - Electric plug connection for air vent at the sides
15. 21 - Electric plug connection for dashboard bracket
16. 22 - Electric plug connection for ignition starter switch
17. 23 - Electric plug connection for parking brake switch
18. 24 - Electric plug connection for rotary light switch
19. 25 - Electric plug connection for temperature sensor in side air vents
20. 26 - Electric plug connection for potentiometer for side air vent
21. 27 - Electric plug connection for relay module
22. 28 - Electric plug connection for temperature sensor in footwell outlet vents on the left
23. 29 - Electric plug connection for front-end electronics control unit
24. 30 - Electric plug connection for accelerator pedal
25. 31 - Electric plug connection for instrument cluster
26. 32 - Electric plug connection from antenna to instrument cluster
27. 33 - Electric plug connection for steering column
28. 34 - Electric plug connection for steering column
29. 35 - Electric plug connection for interior temperature sensor
30. 36 - Electric plug connection for potentiometer for center air vent at the left
31. 37 - Electric plug connections for steering column switch (three electric plug connections)
32. 38 - Electric plug connection for PCM/car radio (four electric plug connections)
33. 39 - Electric plug connection for compass
34. 40 - Electric plug connection for loudspeaker in dashboard at the center
35. 41 - Electric plug connection for sun sensor
36. 42 - Electric plug connections for air conditioning servo motor in dashboard (two electric plug connections)
37. 43 - Electric plug connection for potentiometer for center air vent at the right

Wire harness in passenger compartment at the left:

Detach rear floor covering and fold it aside.
Release and disconnect electric plug connection for lateral-acceleration sensor -1- at the C-pillar.
Release and disconnect electric plug connection for the fuel pump -4- at the left. → 206619 REMOVING AND INSTALLING FUEL PUMP
Release and disconnect electric plug connection for KESSY antenna in the rear left wheel housing -5- . → 966719 REMOVING AND INSTALLING KESSY ANTENNA
Release and disconnect electric plug connection for front left seat-belt pretensioner -8- . → 691119 REMOVING AND INSTALLING FRONT THREE-POINT BELT
Unscrew fastening nut from ground point at the B-pillar -9- .
Release and disconnect electric plug connection for door connection point at the rear left -10- . → 585119 REMOVING AND INSTALLING REAR DOOR
Unclip bracket for plug socket for door connection point for rear left door and pull wiring inwards.
Loosen fastening points in the passenger compartment at the left.

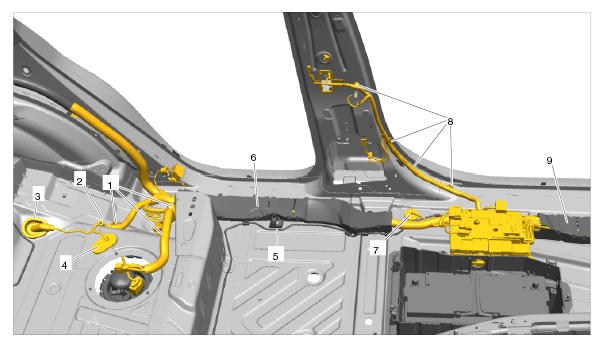

Fig 3: Identifying Fastening Points In Passenger Compartment At Left
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 9.1. Loosen fixing clips -1- under the rear seat.
2. 9.2. Release wire harness from cable duct -2- under the rear seat.
3. 9.3. Pull rubber sleeve -3- for line for KESSY antenna in rear left wheel housing inwards.
4. 9.4. Pull rubber sleeve -4- for line to the fuel pump inwards.
5. 9.5. Disconnect pressure line for the levelling system -5- from the bracket at the cable duct.
6. 9.6. Release cable duct -6- from the underbody.
7. 9.7. Loosen fixing clips -8- for line for the rear left door connection point.
8. 9.8. Release cable duct -9- from the underbody.
Wire harness in dashboard area:
Unscrew fastening nut from ground point -12- at the A-pillar.
Release and disconnect electric plug connection for door connection point at the front left -13- . → 575119 REMOVING AND INSTALLING FRONT DOOR
Unclip bracket for plug socket for door connection point for front door and pull wiring inwards.
Release and disconnect electric plug connection for control unit for ParkAssist system -14- .
Release and disconnect electric plug connection for fuse carrier -16- .
Release and disconnect electric plug connection for relay module -17- .
Release and disconnect electric plug connection for gateway control unit -18- . → 903519 REMOVING AND INSTALLING GATEWAY CONTROL UNIT
Release and disconnect electric plug connection for relay module -27- next to the accelerator pedal.
Release and disconnect electric plug connection for front-end electronics control unit -29- . → 944919 REMOVING AND INSTALLING CONTROL UNIT FOR FRONT-END ELECTRONICS
Release and disconnect electric plug connection for accelerator pedal -30- . → 208055 REPLACING ACCELERATOR PEDAL MODULE
Loosen fastenings in the dashboard area.
1. 10 - Bracket behind dashboard at the left
2. 11 - Bracket behind dashboard at the center

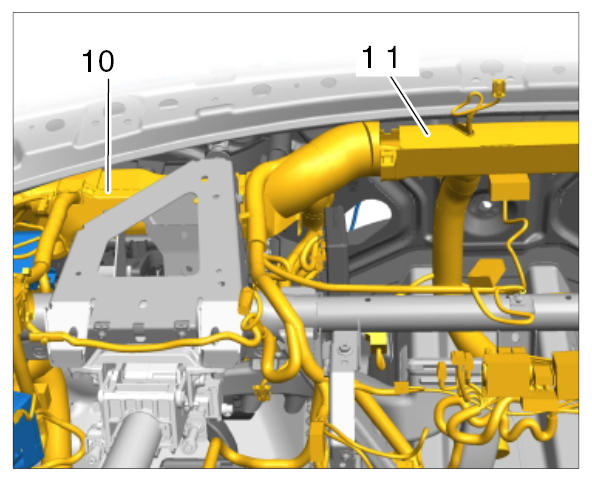

  Fig 4: Identifying Fastenings In Dashboard Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 20.1. Disconnect wire harness from bracket behind the dashboard at the left -10- .
2. 20.2. Disconnect wire harness from bracket behind the dashboard at the center -11- .
