Securing Main Wire Harness In Luggage Compartment At The Right
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

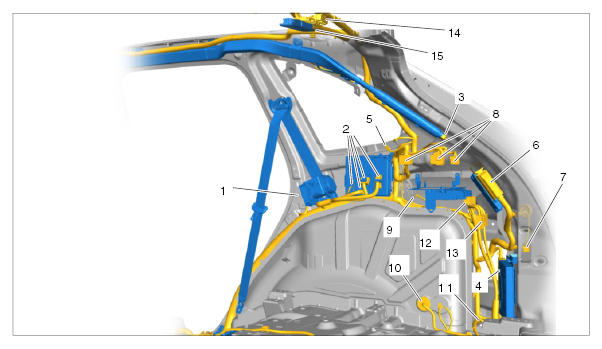

- Connector For Rear Seat-Belt Pretensioner
- Four Connectors For Control Unit Of Rear-End Electronics
- Connector For Head Airbag
- Connector For Levelling System Control Unit
- Connector For Loudspeaker In Trim Panel For Luggage Compartment
- Connector For Parking Brake Control Unit
- Connector For Tail Light
- Connector For Loudspeaker Amplifier
- Connector For Filler Flap Actuator
- Connector For Ground Strap Of Tank Filler Neck
- Connector For Ground Point
- Connector For Trailer Hitch Control Unit
- Three Connectors For Connection Point On Wheel Housing
- Two Connectors For Connection Point On Tailgate
- Connector For Rear Interior Lighting
- Installation is performed in reverse order.
- First lay the main wire harness loosely in the engine compartment, ensuring that it is positioned correctly.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

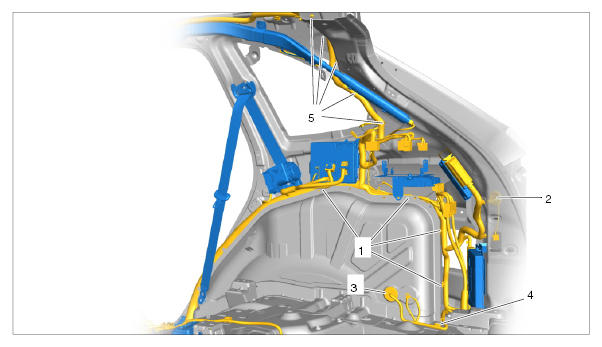

- Fastenings On Wheel Housing
- Rubber Sleeve For Line To Tail Light
- Rubber Sleeve For Ground Strap Of Tank Filler Neck
- Fastening For Ground Strap Of Tank Filler Neck
- Fastenings For Line To Rear Lid Wire Harness
- Fit fastenings -1, 5- and rubber sleeves -3- .
- Tighten fastening nut on ground point -11- to → Tightening Torque: 9 Nm (6.5 ft. lb.) .
- Plug in electric plug connections -1 - 15- until they engage securely.
