Securing Main Wire Harness In Luggage Compartment At The Left

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

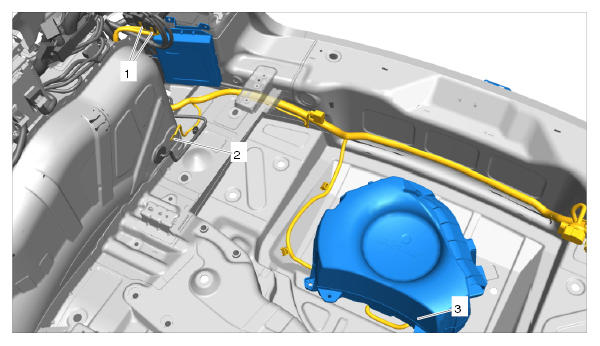

Fig 1: Identifying Connector For Main Wire Harness In Luggage Compartment At Right

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground Point At Right Wheel Housing
Connector For Connection Point At Right Wheel Housing (Two Connectors)
Connector for subwoofer

Fig 2: Identifying Connector For Main Wire Harness In Luggage Compartment At Left
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connector For PDCC Valve Block (With Rubber Sleeve)
Connector For Connection Point On Rear Apron (With Rubber Sleeve)
Ground Point Behind Wheel Housing
Connector For Loudspeaker For Rear Park Sensors
Connector For Tail Light (With Rubber Sleeve)
Connector For Plug Socket In Luggage Compartment
Connector For Connection Point In Tailgate, Left (Two Connectors)
Connector For Head Airbag Unit
Connector For Loudspeaker In Luggage Compartment Trim
Connector For Seat-Belt Pretensioner

Installation is performed in reverse order.
First lay the main wire harness loosely in the engine compartment, ensuring that it is positioned correctly.

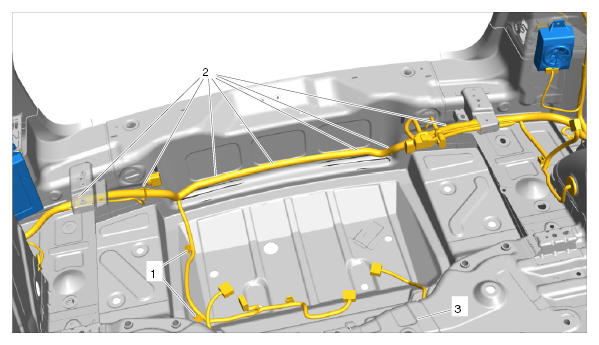

Fig 3: Identifying Fastening Points In Luggage Compartment At Right
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

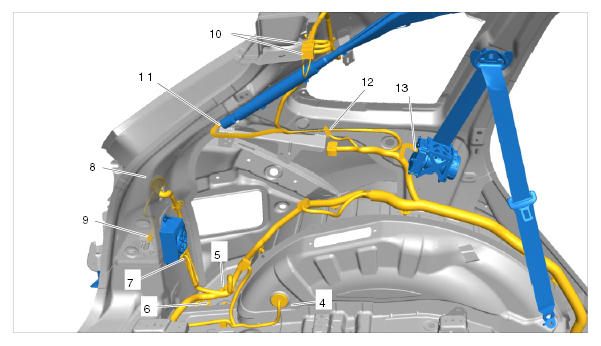

Fig 4: Identifying Fastening Points In Luggage Compartment At Left
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit fastenings and rubber sleeves -1 + 2- and -3 - 8- .
Tighten fastening nuts on ground points -1- and -6- to → Tightening Torque: 9 Nm (6.5 ft. lb.) .
Plug in electric plug connections -2 + 3- and -4 - 13- until they engage securely.
