Securing Main Wire Harness In Engine Compartment At The Left

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

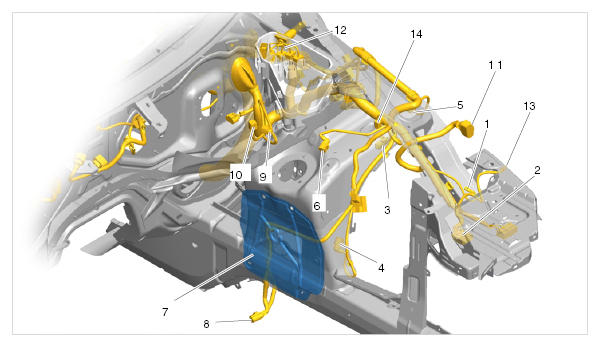

Fig 1: Overview Of Main Wire Harness In Engine Compartment At Left
G09942051Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Ground Point On Wheel Housing
  2. Connector For Front Wire Harness
  3. Connector For ABS Wire Harness
  4. Connector For Level Sensor
  5. Connector For Tyre Pressure Monitoring (TPM) Transmitter
  6. Connector For Spring Strut
  7. Heat Shield Between Primary Catalytic Converter And Wheel Housing
  8. Connector For Steering
  9. Connector For Brake Light Switch
  10. Connector For Brake Fluid Reservoir Level Indicator
  11. Connector For Headlights
  12. Connector For Relay Carrier
  13. Connector For Side Direction Indicator Lights
  14. Connector For Sensor For Body
  15. Connector For Additional Coolant Pump (For Position, See Description For Removal)
  16. Connector For Cooling Water Valve Unit (For Position, See Description For Removal)
  1. Installation is performed in reverse order.
  2. First lay the main wire harness loosely in the wheel housing and engine compartment, ensuring that it is positioned correctly.

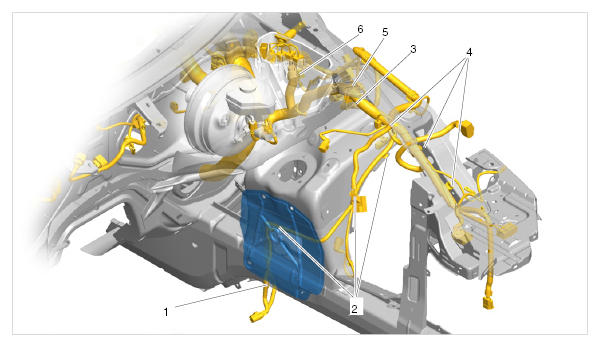

    Fig 2: Identifying Fastenings For Main Wire Harness In Engine Compartment At Left
    G09942052Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Heat Shield Between Primary Catalytic Converter And Wheel Housing
    2. Fastenings For Wiring For Steering
    3. Fastenings For Wiring For Cooling Water Valve Unit
    4. Fastenings In Engine Compartment
    5. Rubber Sleeve In Cross Panel
    6. Fastenings In Plenum Panel
  3. Slide rubber sleeve in cross panel -5-  into the body.
  4. Fit fastenings -6-  for main wire harness in plenum panel.
  5. Fit fastenings -4-  for main wire harness in the engine compartment.
  6. Fit fastenings -2-  for wiring for steering.
  7. Fit fastenings -3-  for wiring for cooling water valve unit.
  8. Fit heat shield -1-  between primary catalytic converter and wheel housing.
  9. Plug in electric plug connections -2 - 16-  until they engage securely.
  10. Tighten fastening nut on ground point -1-  to → Tightening Torque: 9 Nm (6.5 ft. lb.)  .
