Securing Main Wire Harness In Center Console

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

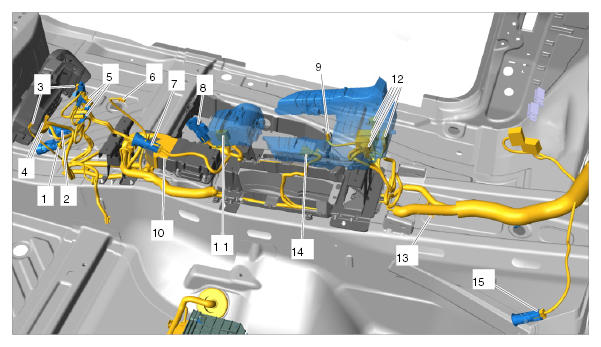

Fig 1: Identifying Connector From Main Wire Harness In Center Console
G09942020Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Connector for plug socket under glove compartment
  2. Connector for rear cigarette lighter
  3. Connector for rear left and right air vents (two connectors)
  4. Connector for rear climate control (two connectors)
  5. Connector for multimedia interface (three connectors)
  6. Connector for switch on storage compartment lid
  7. Connector for plug socket in storage compartment
  8. Connector for cigarette lighter at the cupholder
  9. Connector for switch console light
  10. Connector for airbag control unit
  11. Connector for selector support
  12. Connector for switch console (five connectors)
  13. Ground point
  14. Connector for combination sensor
  15. Connector for rear plug socket
  1. First lay the main wire harness loosely in the center console, ensuring that it is positioned correctly.

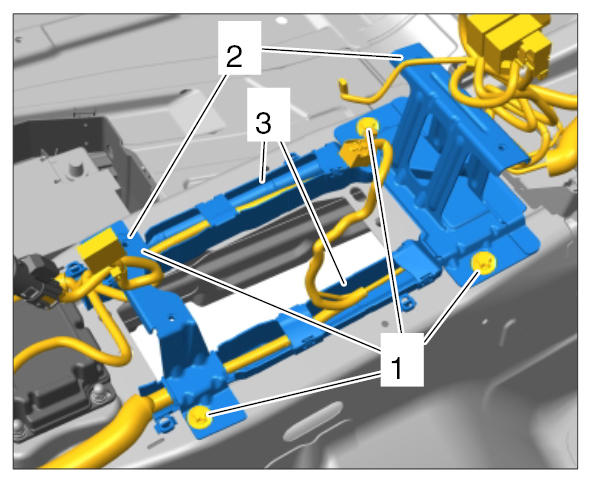

    Fig 2: Identifying Brackets For Center Console And Screws
    G09942021Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit wire harness into the cable ducts -3-  and clip on the cover.
  3. Fit brackets -2-  for center console.
  4. Tighten four fastening screws -1-  on the brackets -2-  to → Tightening Torque: 8 Nm (6 ft. lb.)  .
  5. Tighten fastening nut on ground point -13-  in center console to → Tightening Torque: 9 Nm (6.5 ft. lb.)  .
  6. Plug in electric plug connections -10 + 14-  until they engage securely.
