Loosening Main Wire Harness In Center Console

→ Switch off ignition and remove remote control before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche  .
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed  .
• Never touch the electric pins and plug contacts  .

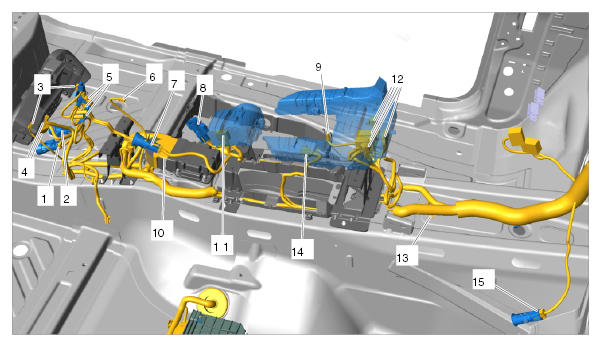

  Fig 1: Identifying Connector From Main Wire Harness In Center Console

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Connector for plug socket under glove compartment
  2. Connector for rear cigarette lighter
  3. Connector for rear left and right air vents (two connectors)
  4. Connector for rear climate control (two connectors)
  5. Connector for multimedia interface (three connectors)
  6. Connector for switch on storage compartment lid
  7. Connector for plug socket in storage compartment
  8. Connector for cigarette lighter at the cupholder
  9. Connector for switch console light
  10. Connector for airbag control unit
  11. Connector for selector support
  12. Connector for switch console (five connectors)
  13. Ground point
  14. Connector for combination sensor
  15. Connector for rear plug socket

1. Release and unplug electric plug connection -10-  on airbag control unit. → REMOVING TRIGGERING UNIT FOR AIRBAG - section on "Removing"
2. Unscrew fastening nut from ground point -13-  in the center console.
3. Release and unplug electric plug connection -14-  for combination sensor. → 456155 REPLACING COMBINATION SENSOR
4. Unscrew fastening screws -1-  on brackets and remove the brackets -2-  .

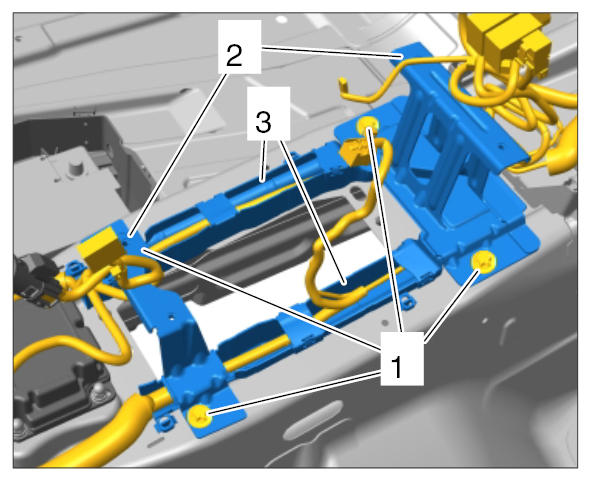

   Fig 2: Identifying Brackets For Center Console And Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Release wire harness from the cable duct -3-  .
