Securing Main Wire Harness In Luggage Compartment At The Right
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

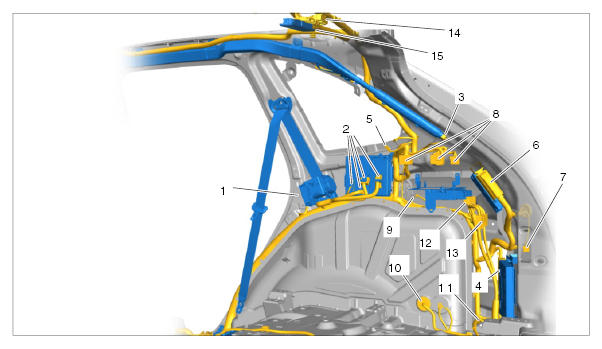

- Electric plug connections for rear seat-belt pretensioners
- Electric plug connections for control unit for rear-end electronics (4 electric plug connections)
- Electric plug connections for head airbag
- Electric plug connections for levelling system control unit
- Electric plug connections for loudspeaker in side trim panel for luggage compartment
- Electric plug connections for parking brake control unit
- Electric plug connections for tail light
- Electric plug connections for loudspeaker booster
- Electric plug connections for filler flap actuator
- Electric plug connection for ground line for tank filler neck
- Fastening nut on ground line
- Electric plug connections for control unit for trailer hitch
- Electric plug connections for connection point on wheel housing (3 electric plug connections)
- Electric plug connections for connection point for tailgate (2 electric plug connections)
- Electric plug connections for rear interior lighting
- Installation is performed in reverse order.
- First lay the main wire harness loosely in the luggage compartment, ensuring that it is positioned correctly.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

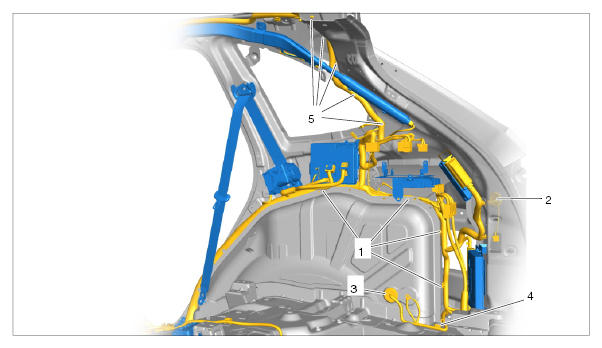

- Fastening Points On Wheel Housing
- Rubber Sleeve For Line For Tail Light
- Rubber Sleeve For Ground Line For Tank Filler Neck
- Fastening Point For Ground Line For Tank Filler Neck
- Fastening Points For Line For Tailgate Wire Harness
- Fit fastening points -1, 4, 5- and rubber sleeve -3- .
- Tighten fastening nut for ground point -11- . → Tightening Torque: 9 Nm (6.5 ft. lb.)
- Plug in electric plug connections -1 - 15- until they engage securely.
