Securing Main Wire Harness In Luggage Compartment At The Left

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

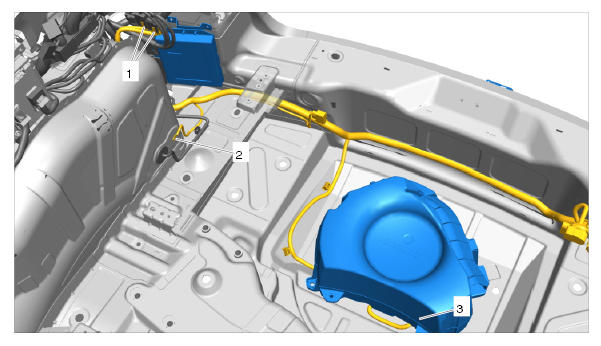

Fig 1: Identifying Connectors For Main Wire Harness In Luggage Compartment At Right
G09942039Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Electric plug connections for connection point on wheel housing at the right (2 electric plug connections)
  2. Ground point at right wheel housing
  3. Electric plug connection for subwoofer

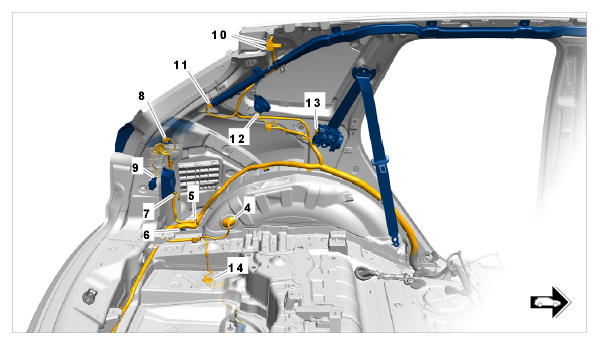

    Fig 2: Identifying Connectors For Main Wire Harness In Luggage Compartment At Left
    G09942040Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Electric Plug Connection For PDCC Valve Block (With Rubber Sleeve)
  5. Electric Plug Connection For Connection Point For Rear Apron (With Rubber Sleeve)
  6. Ground Point Behind Wheel Housing
  7. Electric Plug Connection For Buzzer For Parking Assistant
  8. Electric Plug Connection For Tail Light (With Rubber Sleeve)
  9. Electric Plug Connection For Plug Socket In Luggage Compartment
  10. Electric Plug Connections For Connection Point For Tailgate At The Left (2 Electric Plug Connections)
  11. Electric Plug Connection For Head Airbag Unit
  12. Electric Plug Connection For Loudspeaker In Luggage Compartment Trim Panel
  13. Electric Plug Connection For Seat-Belt Pretensioner
  14. Rubber Sleeve For Line For Tyre Pressure Monitoring (TPM) Control Unit
  1. Installation is performed in reverse order.
  2. First lay the main wire harness loosely in the luggage compartment, ensuring that it is positioned correctly.

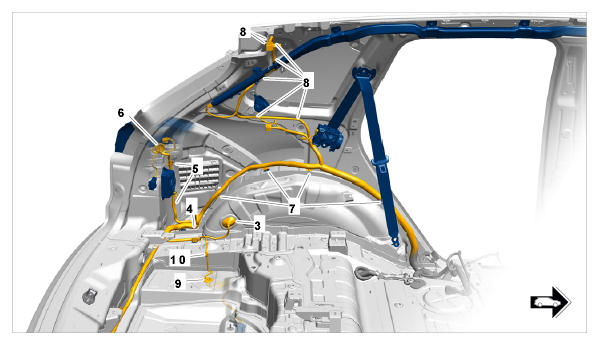

    Fig 3: Identifying Fastening Points In Luggage Compartment At Left
    G09942041Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit fastening points and rubber sleeves.
  4. Tighten fastening nuts on ground points -2-  and -6-  . → Tightening Torque: 9 Nm (6.5 ft. lb.)
  5. Plug in electric plug connections until they engage securely.
