Loosening Main Wire Harness In Luggage Compartment At The Left

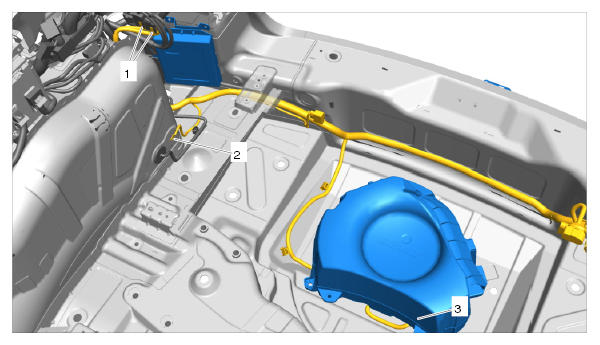

Fig 1: Identifying Connectors For Main Wire Harness In Luggage Compartment At Right

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Electric Plug Connections For Connection Point On Wheel Housing At The Right (2 Electric Plug Connections)
2. Ground Point At Right Wheel Housing
3. Electric Plug Connection For Subwoofer

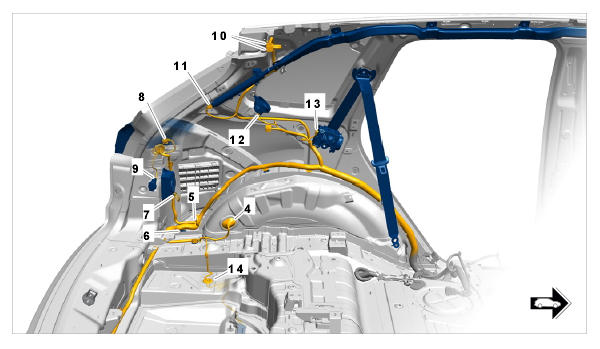

   Fig 2: Identifying Connectors For Main Wire Harness In Luggage Compartment At Left

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Electric Plug Connection For Pdcc Valve Block (With Rubber Sleeve)
5. Electric Plug Connection For Connection Point For Rear Apron (With Rubber Sleeve)
6. Ground Point Behind Wheel Housing
7. Electric Plug Connection For Buzzer For Parking Assistant
8. Electric Plug Connection For Tail Light (With Rubber Sleeve)
9. Electric Plug Connection For Plug Socket In Luggage Compartment
10. Electric Plug Connections For Connection Point For Tailgate At The Left (2 Electric Plug Connections)
11. Electric Plug Connection For Head Airbag Unit
12. Electric Plug Connection For Loudspeaker In Luggage Compartment Trim Panel
13. Electric Plug Connection For Seat-Belt Pretensioner
14. Rubber Sleeve For Line For Tyre Pressure Monitoring (TPM) Control Unit

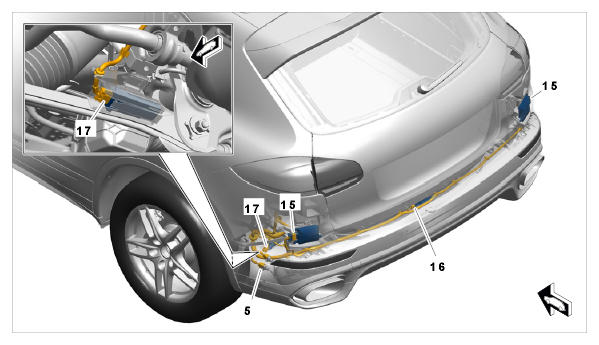

    Fig 3: Identifying Connectors For Main Wire Harness In Luggage Compartment At Outer Left

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Switch off ignition and remove remote control before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche  .
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed  .
• Never touch the electric pins and plug contacts  .

1. Unscrew fastening nut from ground point -2-  at the right wheel housing.
2. Release and disconnect electric plug connections -1-  for connection point on right wheel housing.
3. Release and disconnect electric plug connection -3-  for subwoofer. → 913619 REMOVING AND INSTALLING SUBWOOFER
4. Release and disconnect electric plug connection -4-  for rear PDCC valve unit. → 430419 REMOVING AND INSTALLING VALVE BLOCK
5. Release and disconnect electric plug connection -5-  for connection point on rear apron. → 635519 REMOVING AND INSTALLING REAR APRON
6. Unscrew fastening nut from ground point -6-  behind the wheel housing.
7. Release and disconnect electric plug connection -7-  for buzzer for rear parking assistant. → 917619 REMOVING AND INSTALLING BUZZER FOR PARKING ASSISTANT
8. Release and disconnect electric plug connections -10-  for connection point on tailgate. → 972719 REMOVING AND INSTALLING WIRE HARNESS FOR TAILGATE
9. Release and disconnect electric plug connection -11-  for head airbag unit. → 696619 REMOVING AND INSTALLING HEAD AIRBAG UNIT
10. Release and disconnect electric plug connection -13-  for seat-belt pretensioners. → 691219 REMOVING AND INSTALLING REAR THREE-POINT BELT
11. Release and disconnect electric plug connections -15-  for Lane Change Assist control units. → 917019 REMOVING AND INSTALLING CONTROL UNIT FOR LANE CHANGE ASSIST
12. Release and disconnect electric plug connection -16-  for rear KESSY antenna. → 966719 REMOVING AND INSTALLING KESSY ANTENNA
13. Release and disconnect electric plug connection -17-  for Tyre Pressure Monitoring (TPM) control unit. → 443419 REMOVING AND INSTALLING CONTROL UNIT FOR TYRE PRESSURE MONITORING (TPM)

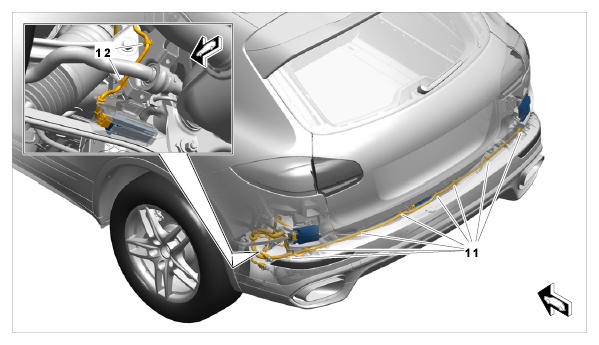

    Fig 4: Identifying Fastening Points In Luggage Compartment At Outer Left

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
14. Loosen fastening points -11-  for line for Lane Change Assist control units and rear KESSY antenna.
15. Loosen fastening points -12-  for line for Tyre Pressure Monitoring (TPM) control unit.

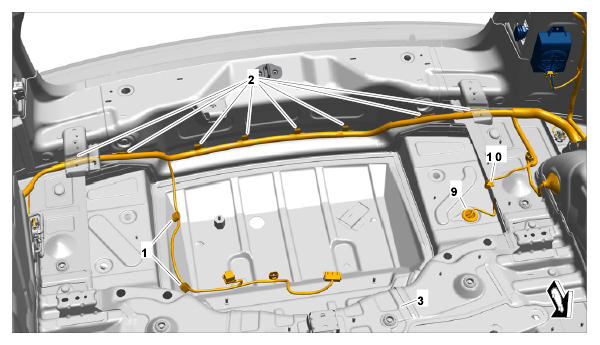

    Fig 5: Identifying Fastening Points In Luggage Compartment At Left

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
16. Loosen fastening points -1-  for wiring for the right-hand side.
17. Loosen fastening points -2-  for wiring for subwoofer.
18. Press rubber sleeve -9-  inwards and pull line for Tyre Pressure Monitoring (TPM) control unit in through it.
19. Loosen fastening point -10-  .

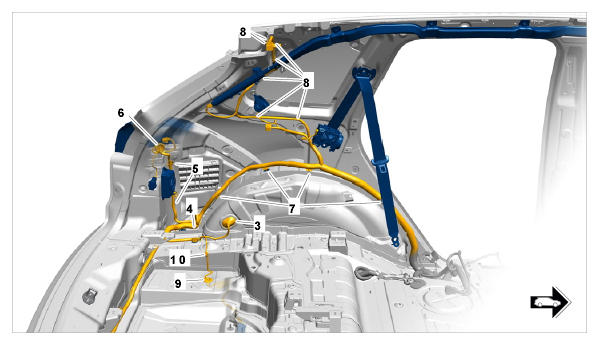

    Fig 6: Identifying Fastening Points In Luggage Compartment At Left

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
20. Press rubber sleeve -3-  for line for the PDCC valve block inwards and pull the line through.
21. Press rubber sleeve -4-  for line for the rear apron inwards and pull the line through.
22. Loosen fastening points -5-  for wiring for tail light.
23. Press rubber sleeve -6-  inwards and pull the line through.
24. Loosen fastening points -7-  for wiring on the wheel housing.
25. Loosen fastening points -8-  for wiring for connection point on rear lid.
