Securing Main Wire Harness In Engine Compartment At The Right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

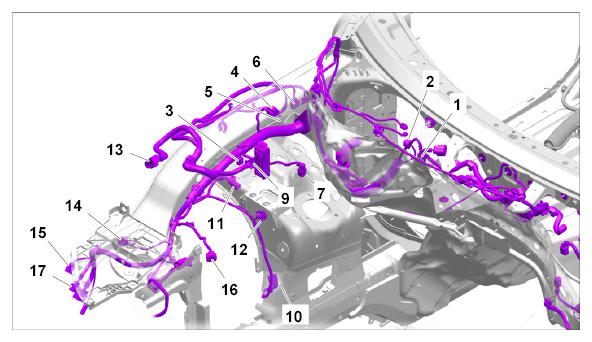

Fig 1: Overview Of Main Wire Harness In Engine Compartment At Right

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric Plug Connection For Pressure Sensor
Electric Plug Connection For Air Quality Sensor
Electric Plug Connection For Sensor For Body
Electric Plug Connection For Coolant Reservoir
Electric Plug Connection For Windscreen-Washer Reservoir
Electric Plug Connection For Windscreen-Washer Pump
Electric Plug Connection For Spring Strut

9 - Electric Plug Connection For Hydraulic Unit
10 - Electric Plug Connection For Level Sensor
11 - Electric Plug Connection For ABS Wire Harness
12 - Ground Point
13 - Electric Plug Connection For Headlights
14 - Ground Point
15 - Electric Plug Connection For Side Marker Light At The Right
16 - Electric Plug Connection For Front Wire Harness On Lock Carrier
17 - Electric Plug Connection For Front Wire Harness In Front Apron (3 Electric Plug Connections)

Installation is performed in reverse order.
First lay the main wire harness loosely in the engine compartment, ensuring that it is positioned correctly.

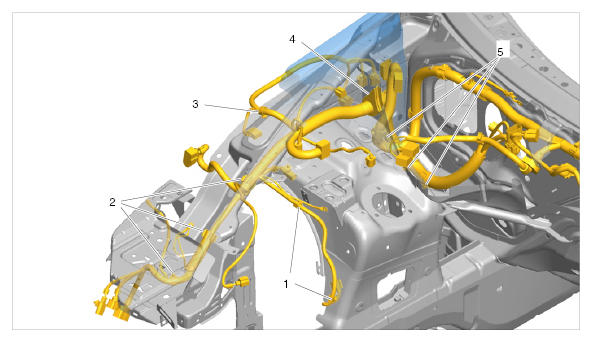

Fig 2: Identifying Fastening Points For Wire Harness In Engine Compartment At Right
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Fastening Points For Wiring For Level Sensor
2. Fastening Points For Main Wire Harness
3. Fastening Point For Electric Wire Harness For Windscreen-Washer Reservoir
4. Rubber Sleeve In Cross Panel
5. Fastening Points For Main Wire Harness
Slide rubber sleeve in cross panel -4- into the body.
Fit fastening points for main wire harness -5- in the plenum panel.
Fit fastening points for main wire harness -2- in the engine compartment.
Fit fastening points for wiring for level sensor -1- .
Pull fastening point for electric wire harness for the windscreen-washer reservoir -3- through from the engine compartment to the wheel housing and fit it.
Plug in electric plug connections -1 - 17- until they engage securely.
Tighten fastening nuts on the ground points -12, 14- . → Tightening Torque: 9 Nm (6.5 ft. lb.)
