Installing Rear Lid Seal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Place rear lid seal -1- in installation position.

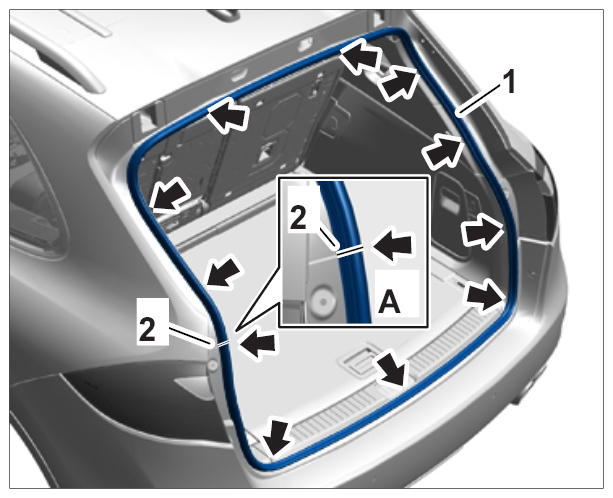

Fig 1: Installing Rear Lid Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

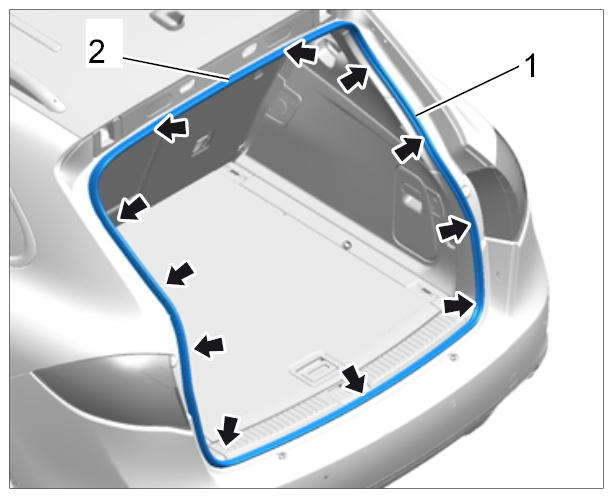

Fig 2: Placing Rear Lid Seal In Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Fit seal with the vent holes facing outwards on the sheetmetal flange.
2. 1.2. Position gap in the seal -2- close to the left tail light -arrow A- .
Press rear lid seal -1- onto the sheetmetal flange.
Check that the seal is fitted securely and is flush, especially in the rounded areas.
